I wrote this up while back on Pelican. Some links may no longer work, but part# should still be good. Easy to find 6-terminal TPS connector as "300zx z32 MAF connector"

I'm listing sources for the engine-harness connectors to make repairs or to build your own replacement harness. Some items have multiple sources with slightly different configurations. Such as complete connectors with pigtails or individual components of housings, contact-terminals, seals and boots. Many thanks to IceShark for teaching me a lot of this stuff.

BACKGROUND
The Bosch/TE/AMP connectors used on the car are from the Junior Timer series. They are connection-compatible with the Junior Power Timer series as completed plugs & sockets. Although the contact-terminals inside the housings have to be from the same series. So if you're building a connector with Junior Timer housing, you have to use Junior Timer contact-terminals inside it. Same with Junior Power Timer housings and terminals. I recommend using the Junior Power Timer series whenever possible as they are more robust with double-catches, double-springs, and can accept wire-seals for better weatherproofing. Junior Power Timer terminals shown below.


INJECTOR/ECT/KNOCK-SENSOR CONNECTORS, 2-position
Mouser - TE/AMP 85202-1 - female housing, Junior Power Timer, new style finger-operated spring-clip, black
Mouser - TE/AMP 282680-1 - female housing, Junior Power Timer, new style finger-operated spring-clip, grey
Napa - CRB 218457 - new style finger-operated spring-clip, pre-assembled with pigtail
Napa - CRB 218545 - old style square spring-clip, pre-assembled with pigtail

SPEED&REF-SENSOR/SPEEDO/ISV CONNECTORS, 3-position
Mouser - TE/AMP 1-962581-1 - male plug, Junior Power Timer
Mouser - TE/AMP 368356-1 - female housing, Junior Power Timer, new style finger-operated spring-clip
Napa - Echlin ECH-EC173 - new style finger-operated spring-clip, pre-assembled with pigtail

AFM CONNECTOR, 5-position
Mouser - TE/AMP 282766-1 - female housing, Junior Power Timer, new style finger-operated spring-clip

TPS CONNECTOR, 6-position
Bosch 1 287 013 004
Nissan 300ZX z32 MAF connector
Nissan 300zx MAF connector on Amazon


TERMINALS, SEALS, BOOTS
Mouser - TE/AMP 925595-1 - female terminal, Junior Timer 17-13ga
Mouser - TE/AMP 927845-1 - female terminal, Junior Timer 20-17ga
Mouser - TE/AMP 925596-2 - female terminal, Junior Timer 20-15ga

Mouser - TE/AMP 964273-1 - female terminal, Junior Power Timer 17-13ga
Mouser - TE/AMP 964284-1 - female terminal, Junior Power Timer 20-17ga
Mouser - TE/AMP 964280-2 - female terminal, Junior Power Timer 24-20ga
Mouser - TE/AMP 964280-1 - female terminal, Junior Power Timer 24ga

Mouser - TE/AMP 1-965982-1 - male terminal, Junior Power Timer 22-18g
Mouser - TE/AMP 1-963860-1 - male terminal, Junior Power Timer 24-20g

Mouser - TE/AMP 828905-1 - wire seal white
Mouser - TE/AMP 828904-2 - wire seal blue
Mouser - TE/AMP 880810-1 - rubber boot, 2-position
Mouser - TE/AMP 880811-2 - rubber boot, 3-position
Bosch 1 280 703 030 - rubber boot, 6-position

[Tom]

Howdy stranger -- great post, thanks. The one thing I've still been struggling to find is a factory-looking rubber boot for the TPS connector. I've seen the ones with the acordian-look, but not the standard-looking (smooth) JPT rubber boot. Have a source for that by any chance?

[DannoXYZ]

hi, I found Bosch 1 280 703 030 will work
https://www.ebay.co.uk/itm/140938481530

[ROB III]

That is the coolest flashlight I have ever seen. THANKS

[Tom]

yeah, I thought the pictures were identical, but they are slightly different. There's also no way to know if the aliexpress ad shows their actual product or the real thing...

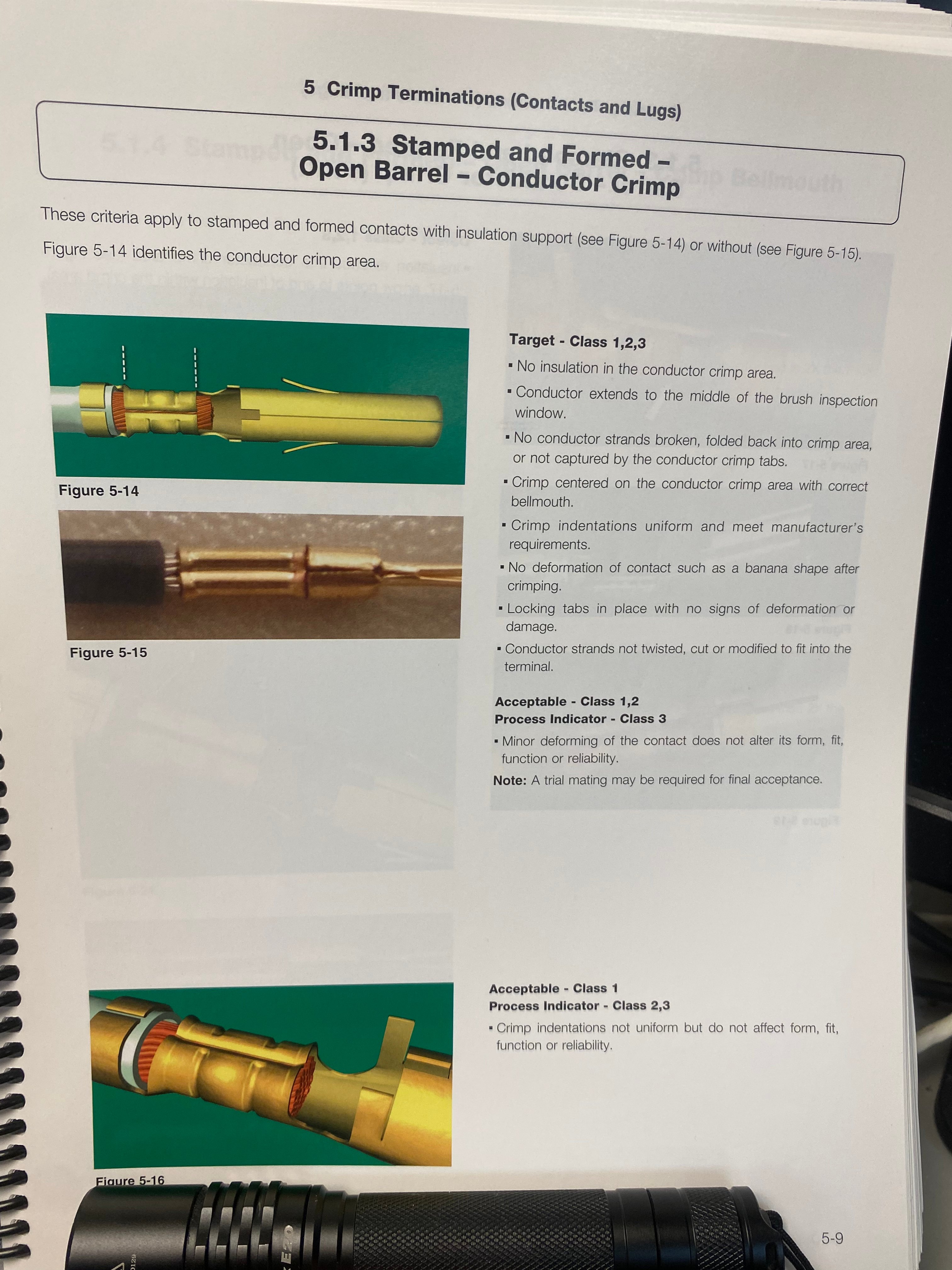

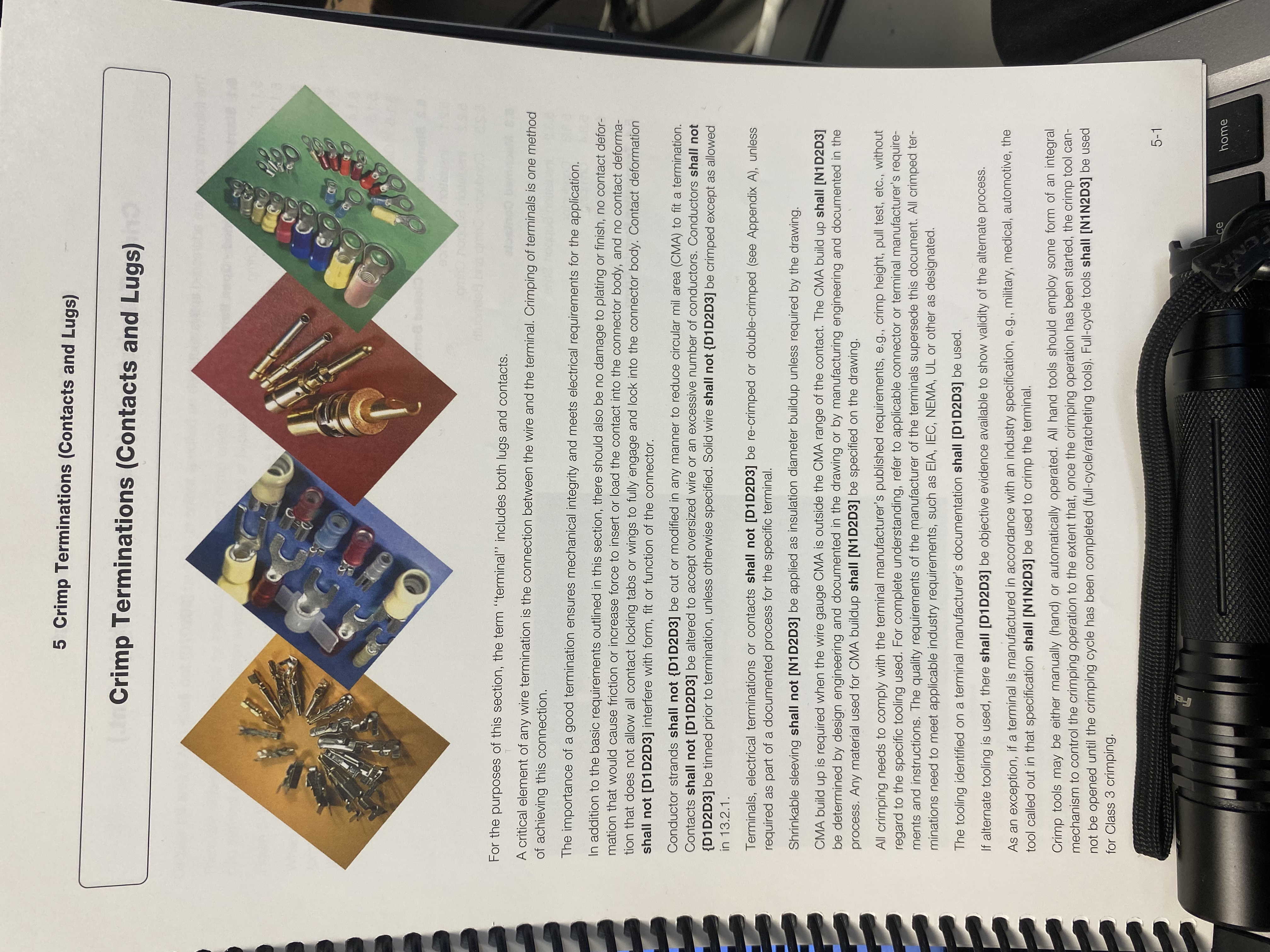

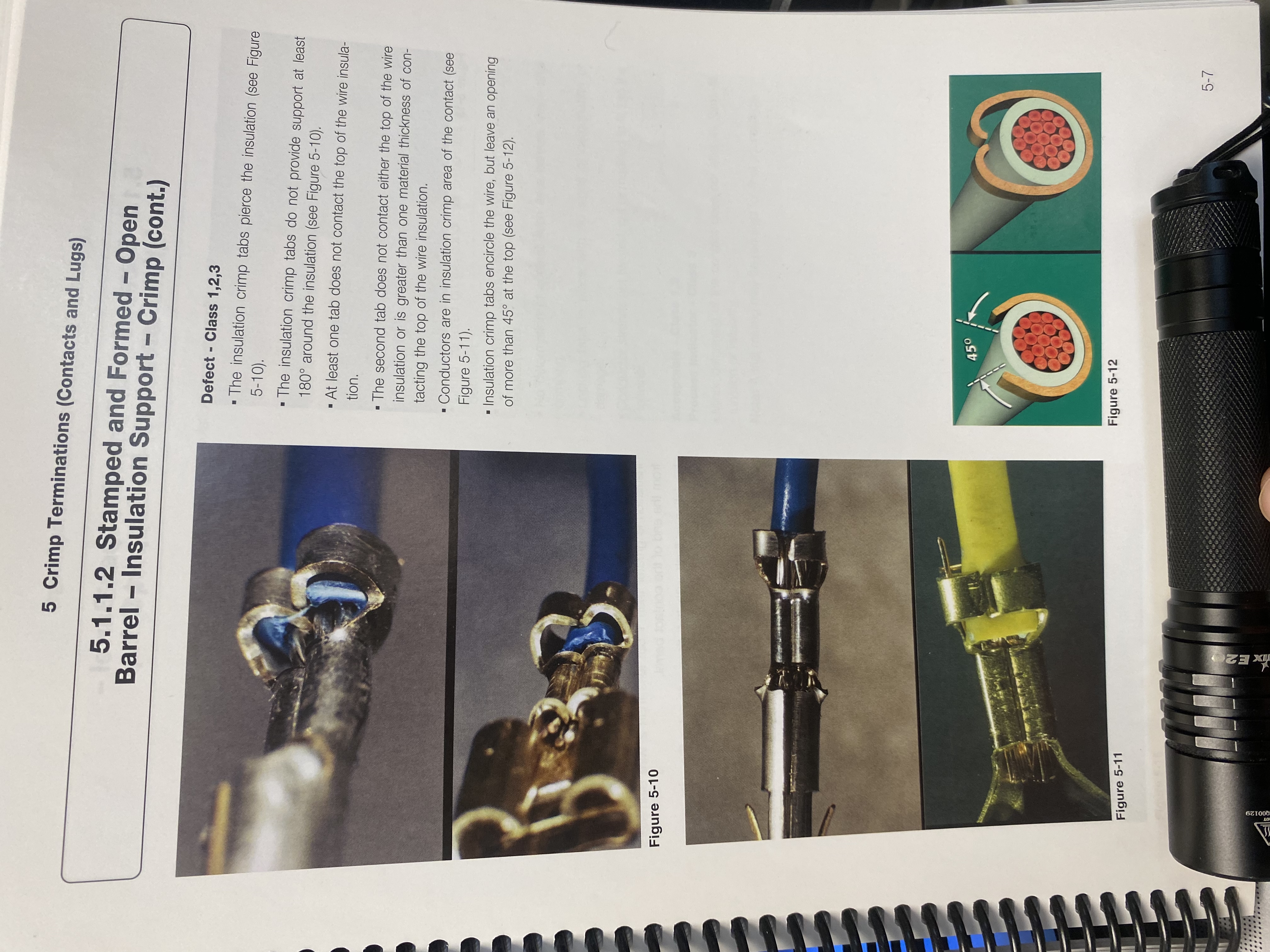

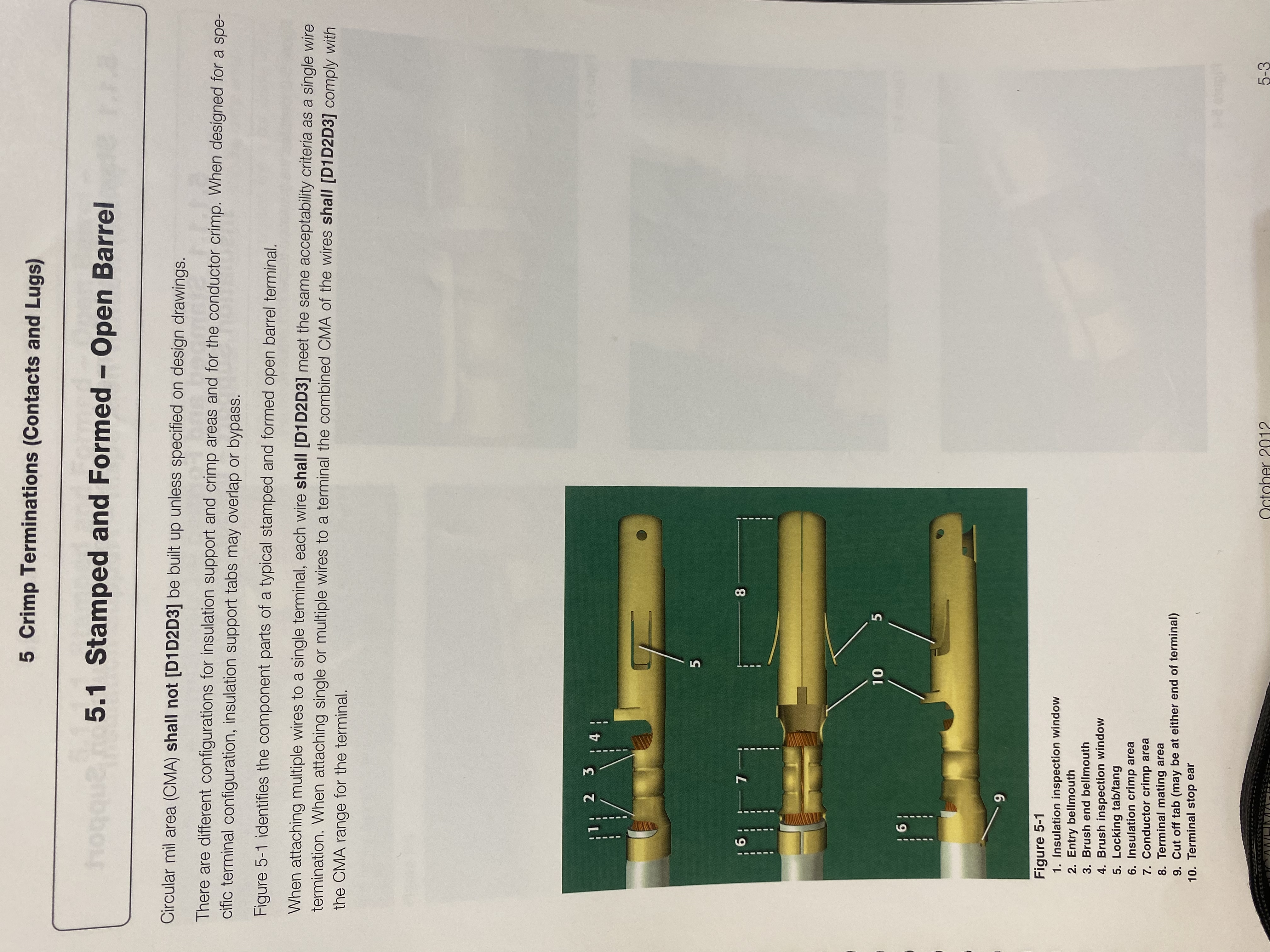

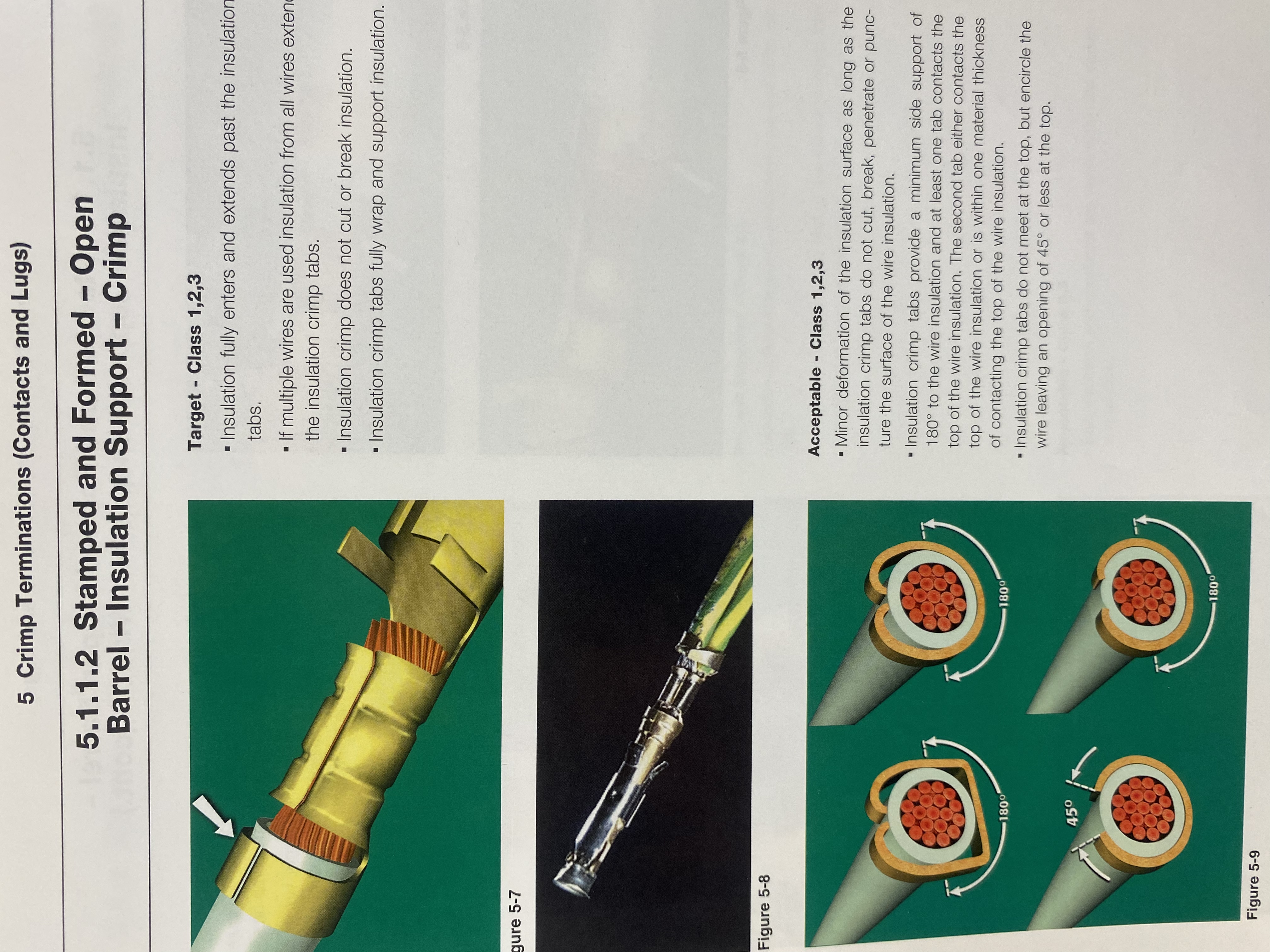

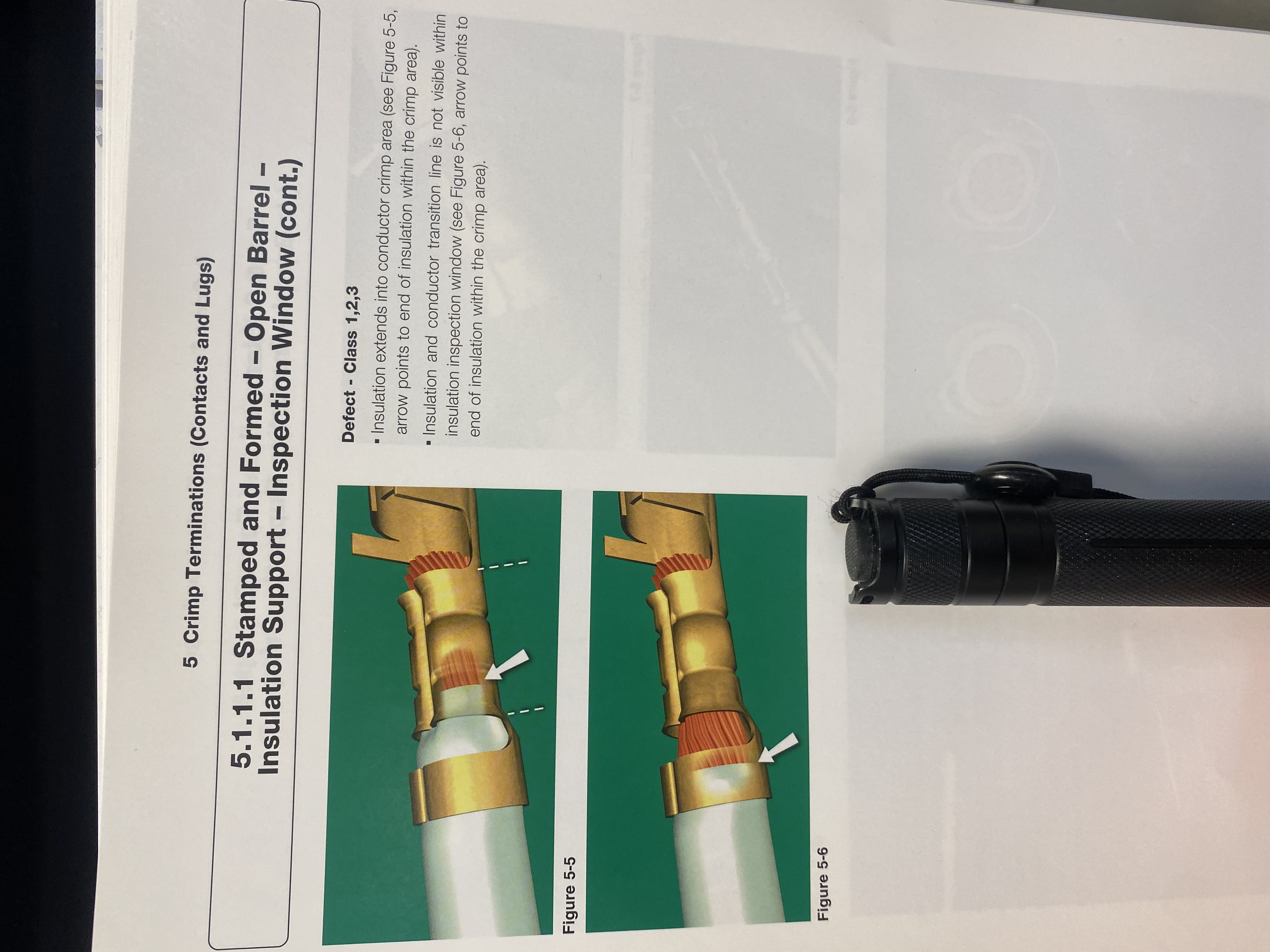

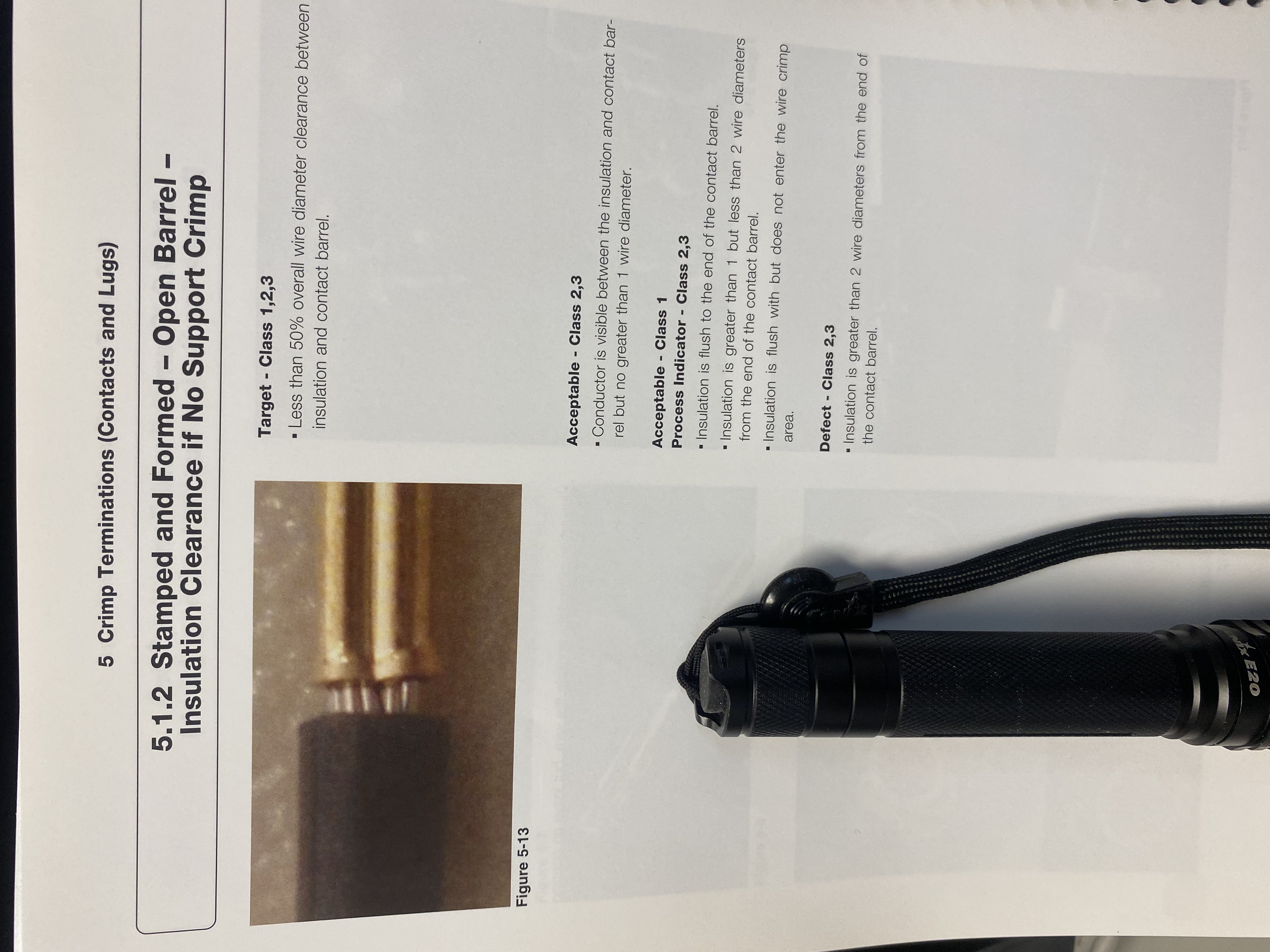

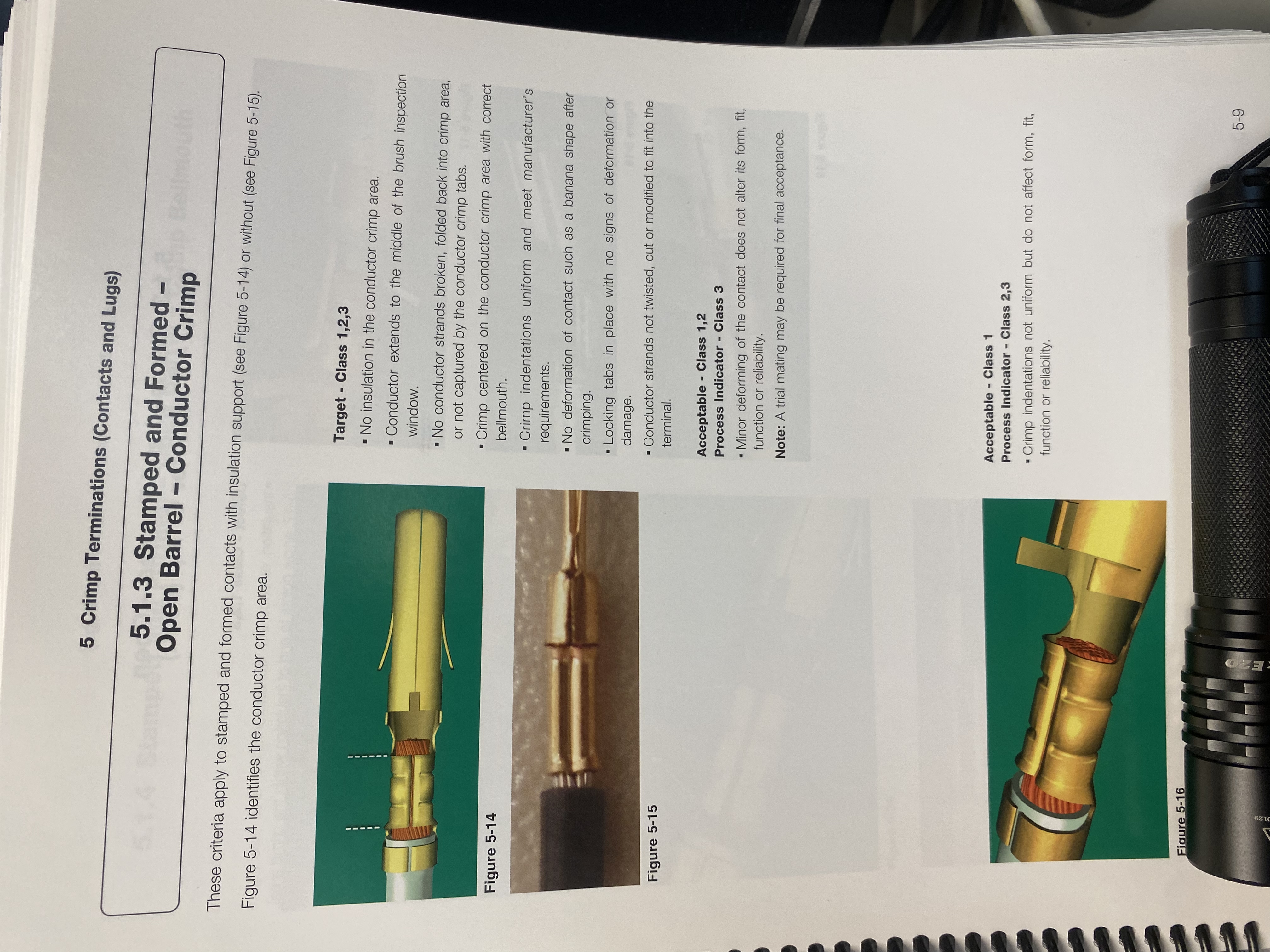

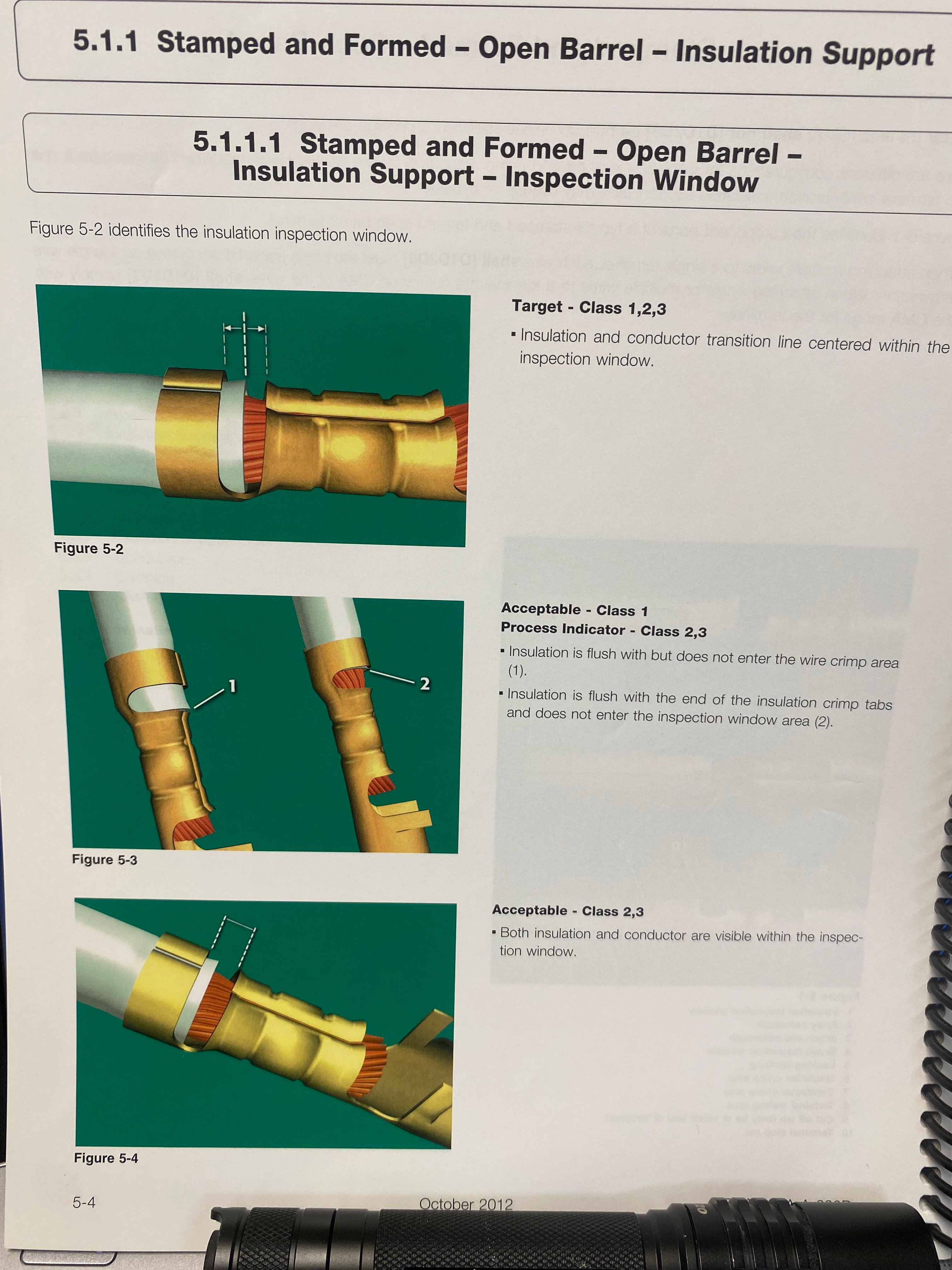

Since we have assembled a group that shares my bizarre interest in electrical connectors, maybe I'll ask if someone can help with an issue I've had for a long time. On the terminal pins, the part that wraps around the wire insulation has been a constant pain for me. I make a harness for my Track Nanny that uses both the male and female pins. I've found good male pins, with little tangs that wrap around an 18 gauge wire nicely. See pic. For the female pins, like the ones that go into the engine harness connectors, the part that wraps around the wire insulation is always too big. I end up snipping them shorter before I crimp them, but would love to find female pins with shorter wire insulation tangs that would wrap around an 18 gauge wire without needing to be cut.

These are perfect....


But I end up cutting these down to size...

Happy to report I finally found a good female pin with insulation legs intended to wrap around an 18g wire (17 to 22awg actually). It's part number 144431-1 My quest is complete.
