Oil system clean up
Much cleaner now.
- Add Pictures/Files
-
- 6F5D5AAE-9393-40B3-8387-311907426A9F.jpeg (2.84 MiB) Viewed 1936 times
-
- 933DA90F-7B98-493A-B3C0-8CA82C1390E6.jpeg (2.89 MiB) Viewed 1936 times
-
- 69CFD61A-E76C-4E9D-B7F0-A0B76968B106.jpeg (3.49 MiB) Viewed 1936 times
-
- 682147A1-FB0F-4D5F-A405-3760F18D9BB3.jpeg (3.71 MiB) Viewed 1936 times
-
- BC62C5B8-2CBD-481F-80C9-266FE7C4003D.jpeg (2.86 MiB) Viewed 1936 times
-
- 620C361D-F244-4912-82BE-E24930210A3B.jpeg (2.55 MiB) Viewed 1936 times
-
- 5AD35477-029B-4E8A-B8B5-C267DEFF34FD.jpeg (3.28 MiB) Viewed 1936 times
-
- 82DDC0D9-36E9-47BE-A3C6-A514FDB337C6.jpeg (3.12 MiB) Viewed 1936 times
-
- D7CDC409-6A93-4974-BE77-E5C5C538FDB5.jpeg (2.78 MiB) Viewed 1936 times
-
- B0F0A65B-0693-457F-8034-1EB65E2DC88C.jpeg (3.13 MiB) Viewed 1936 times
- 8E78EAC8-D2A6-4A3E-B7B0-9AD1C07D9C48.jpeg (3.27 MiB) Viewed 1933 times
- BA993EB9-5C85-4F02-B8CA-88250228A25A.jpeg (3.44 MiB) Viewed 1933 times
- 8EE3AA93-152A-44E3-A4B9-37040D8271C6.jpeg (3.03 MiB) Viewed 1934 times

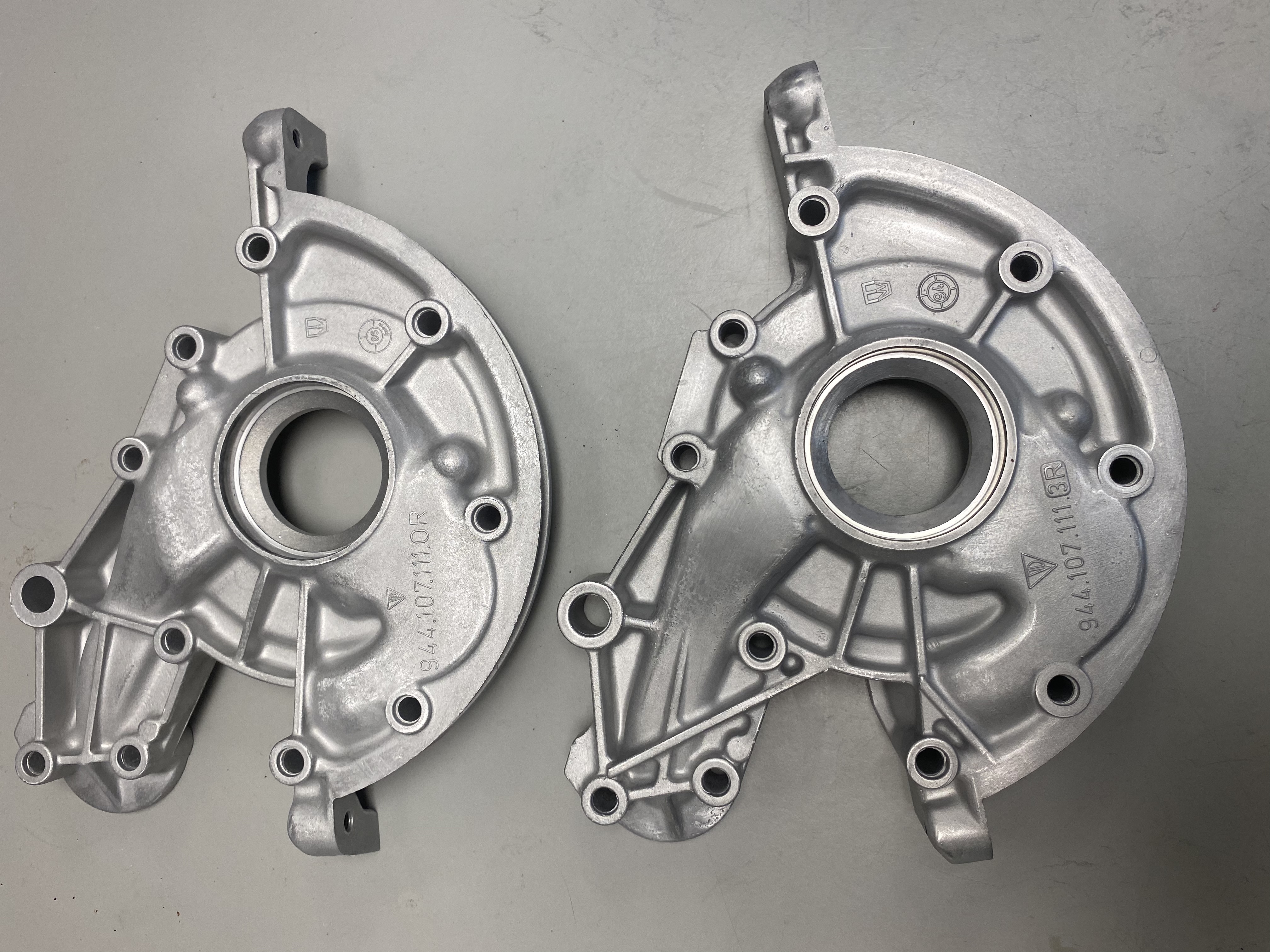

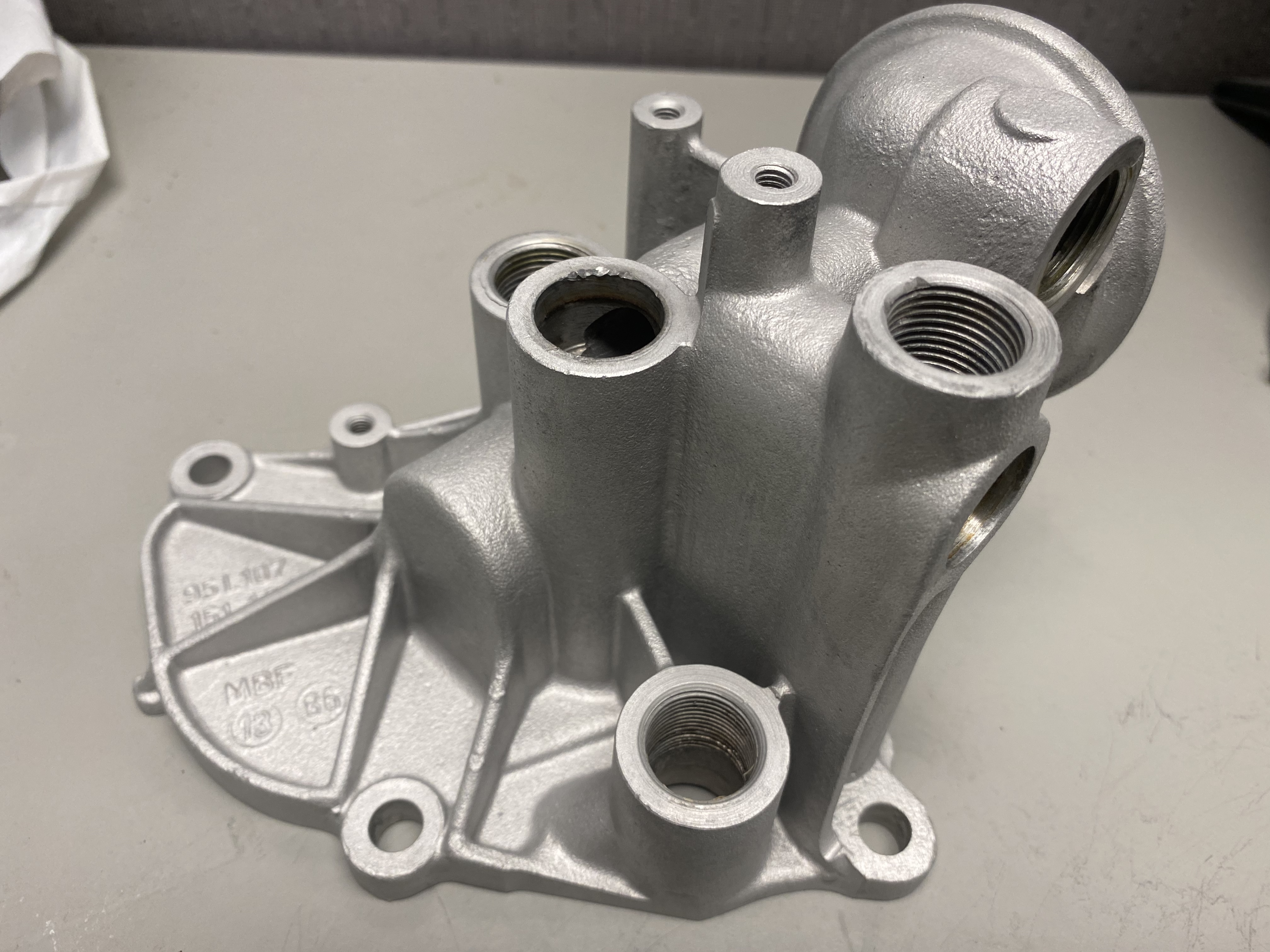

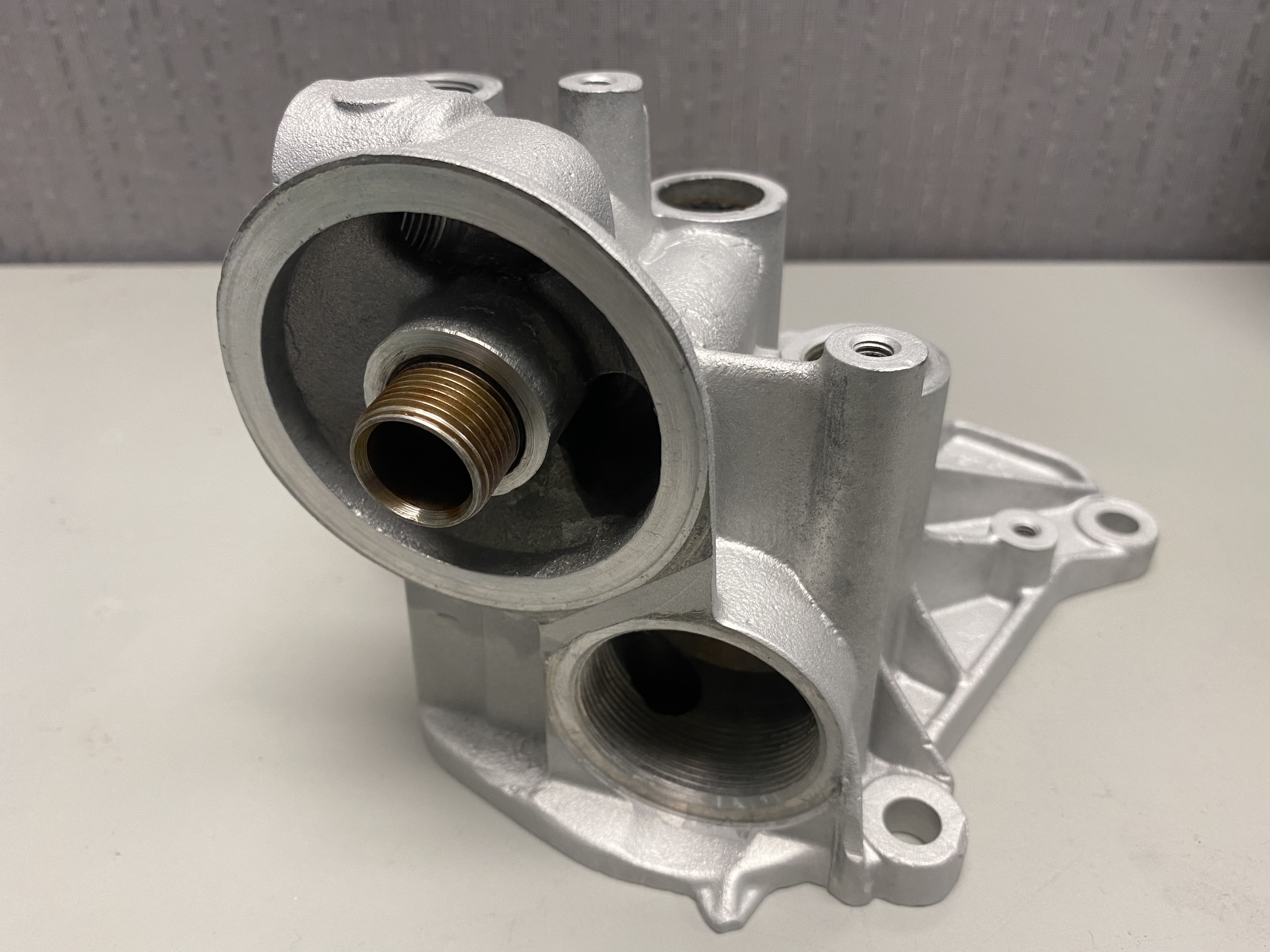

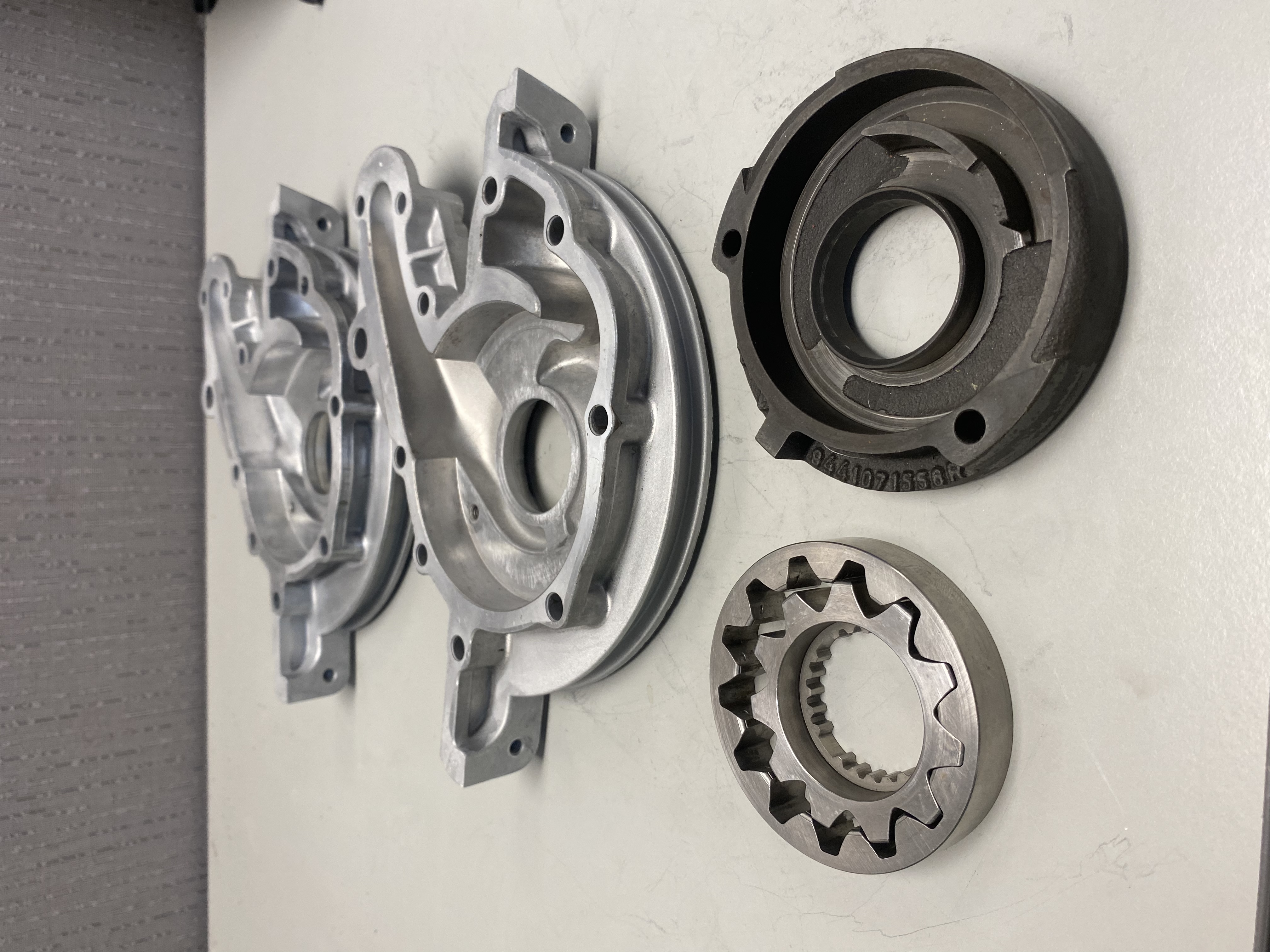

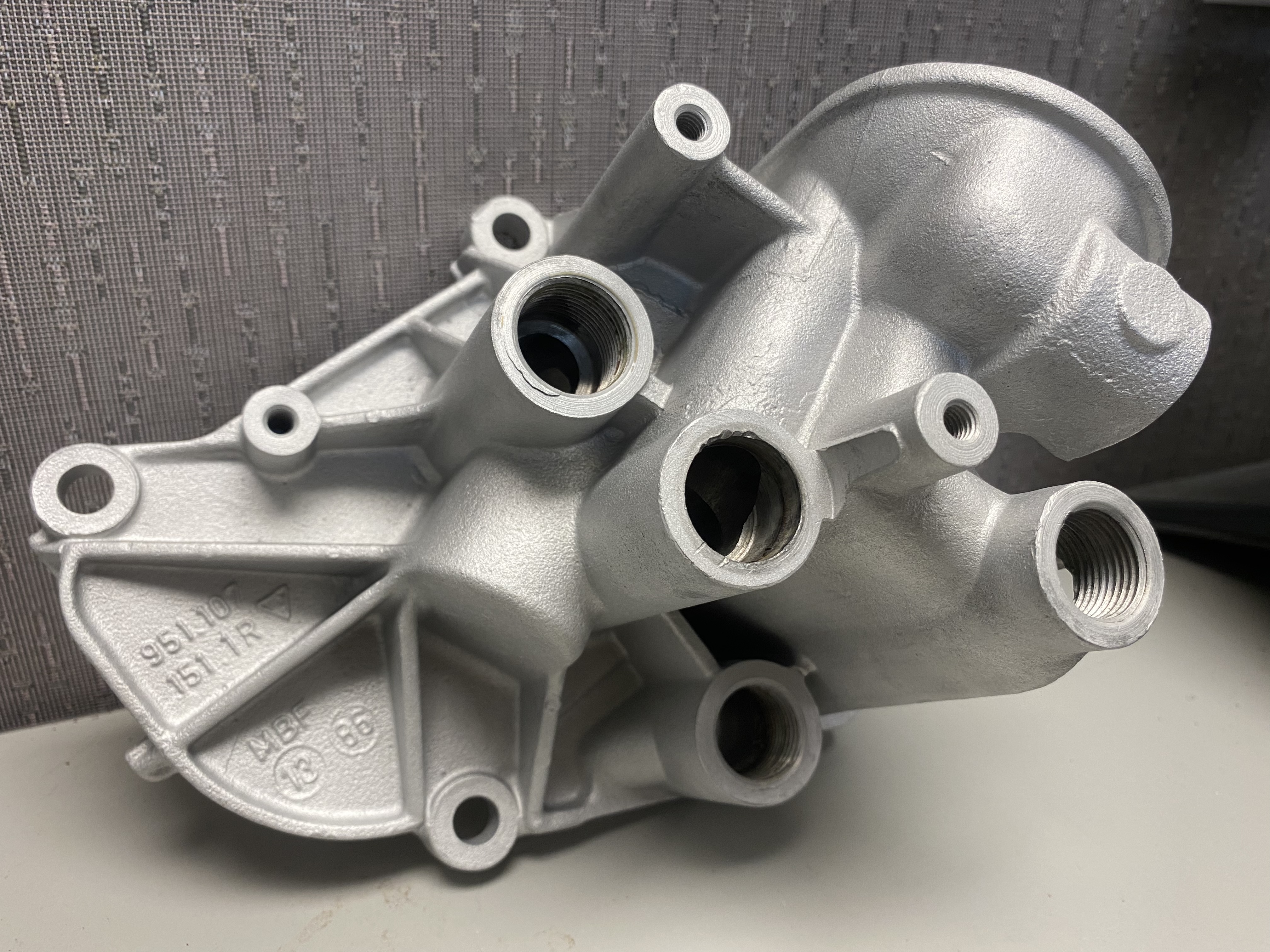

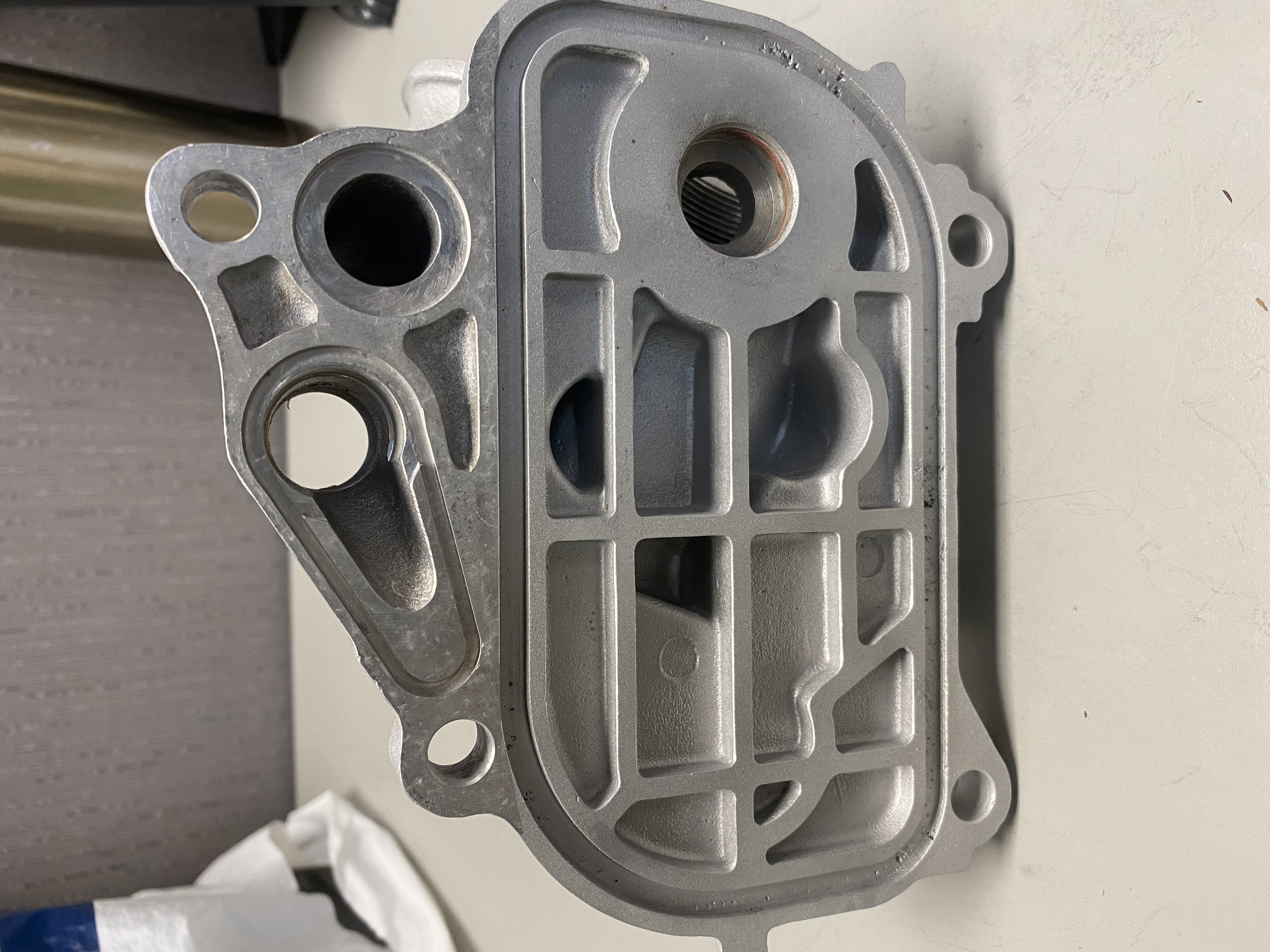

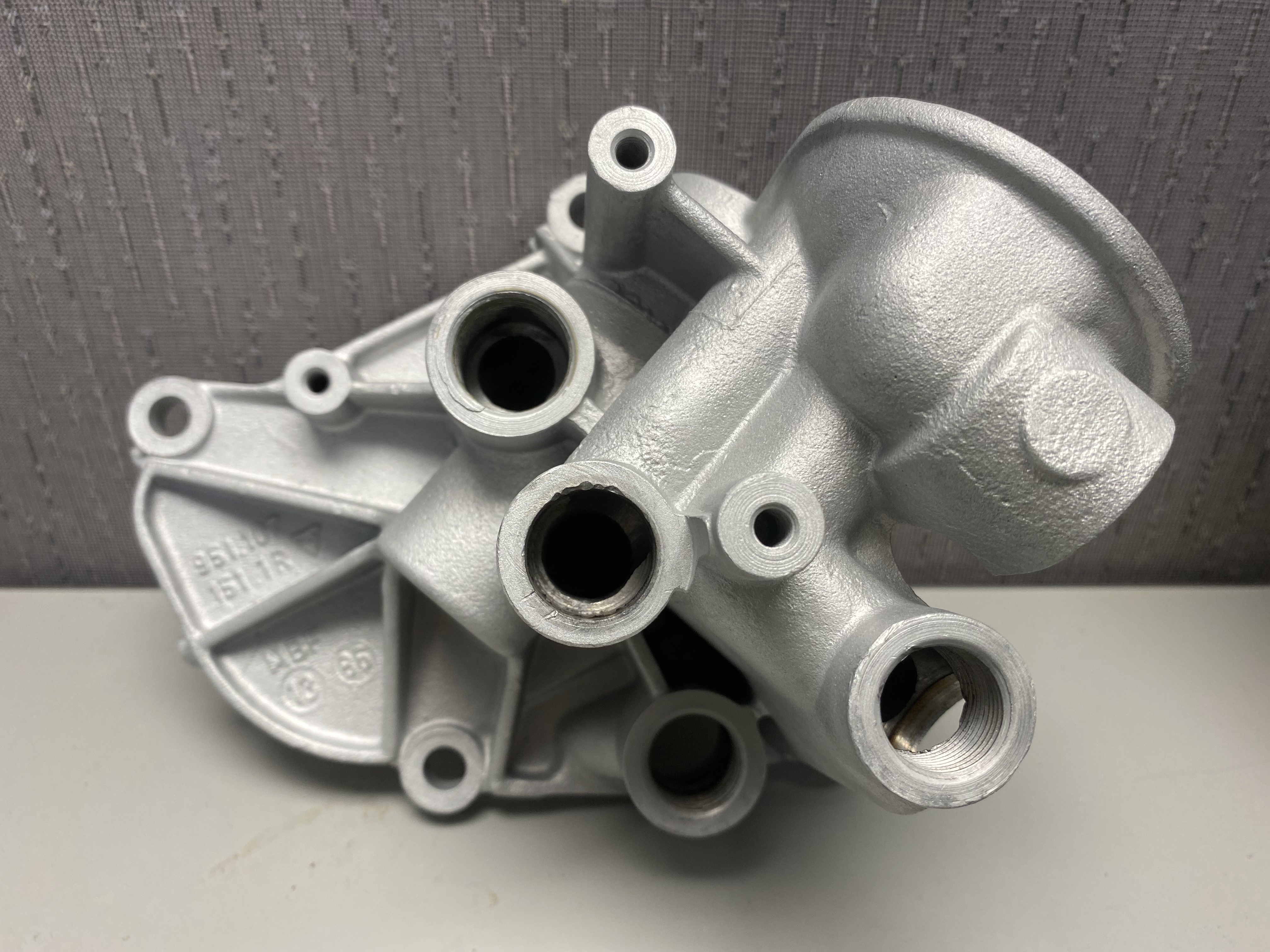

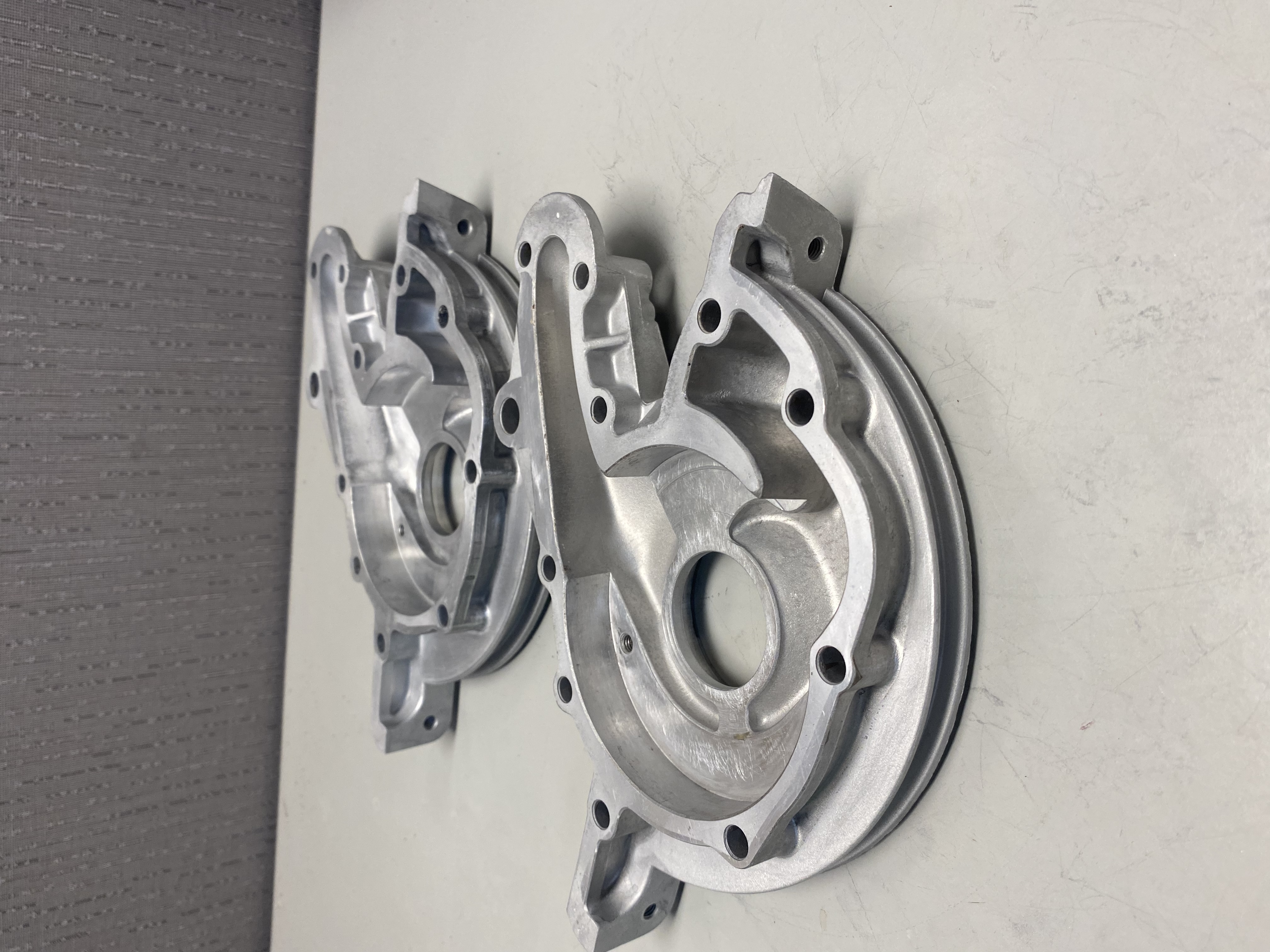

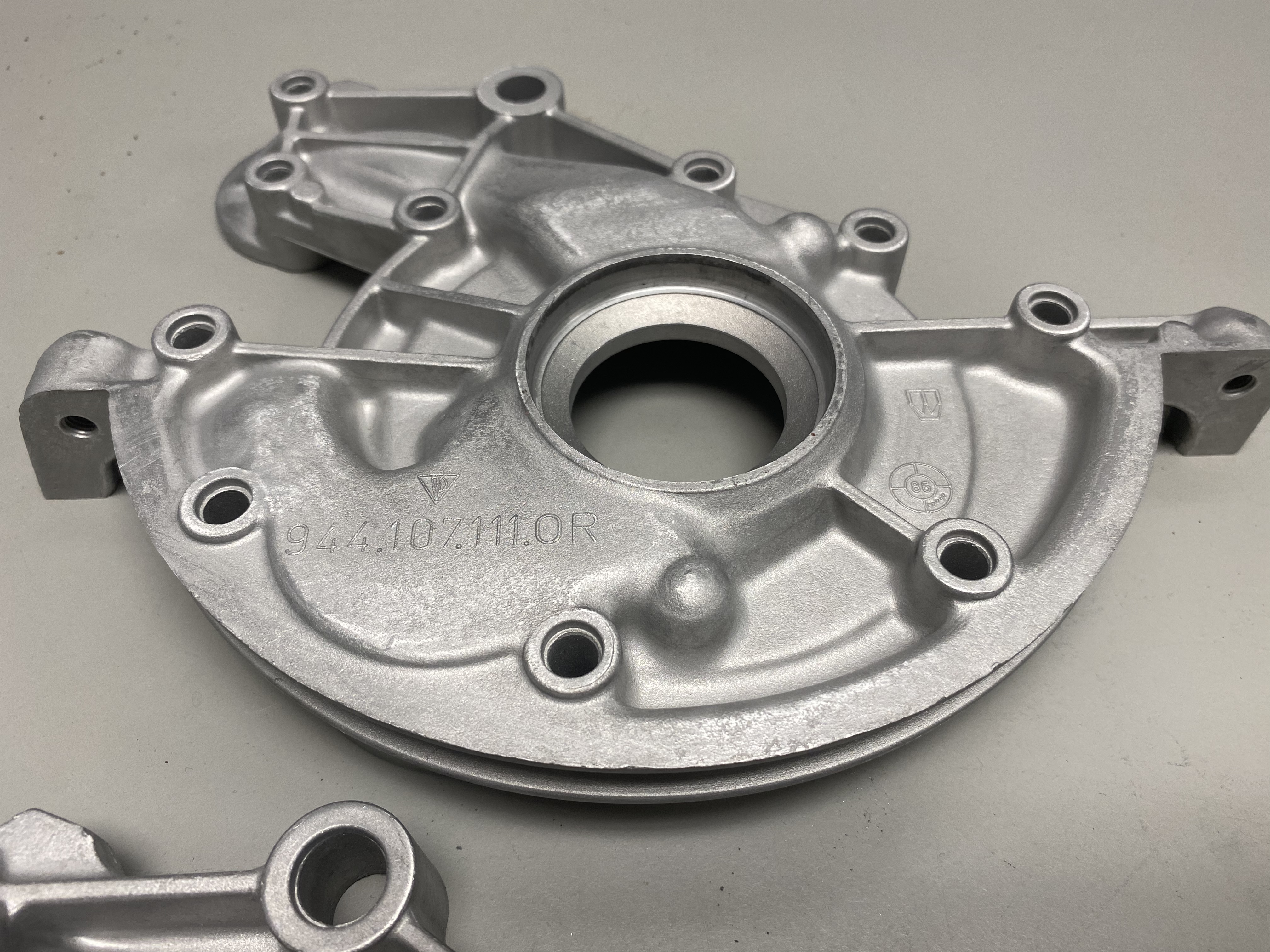

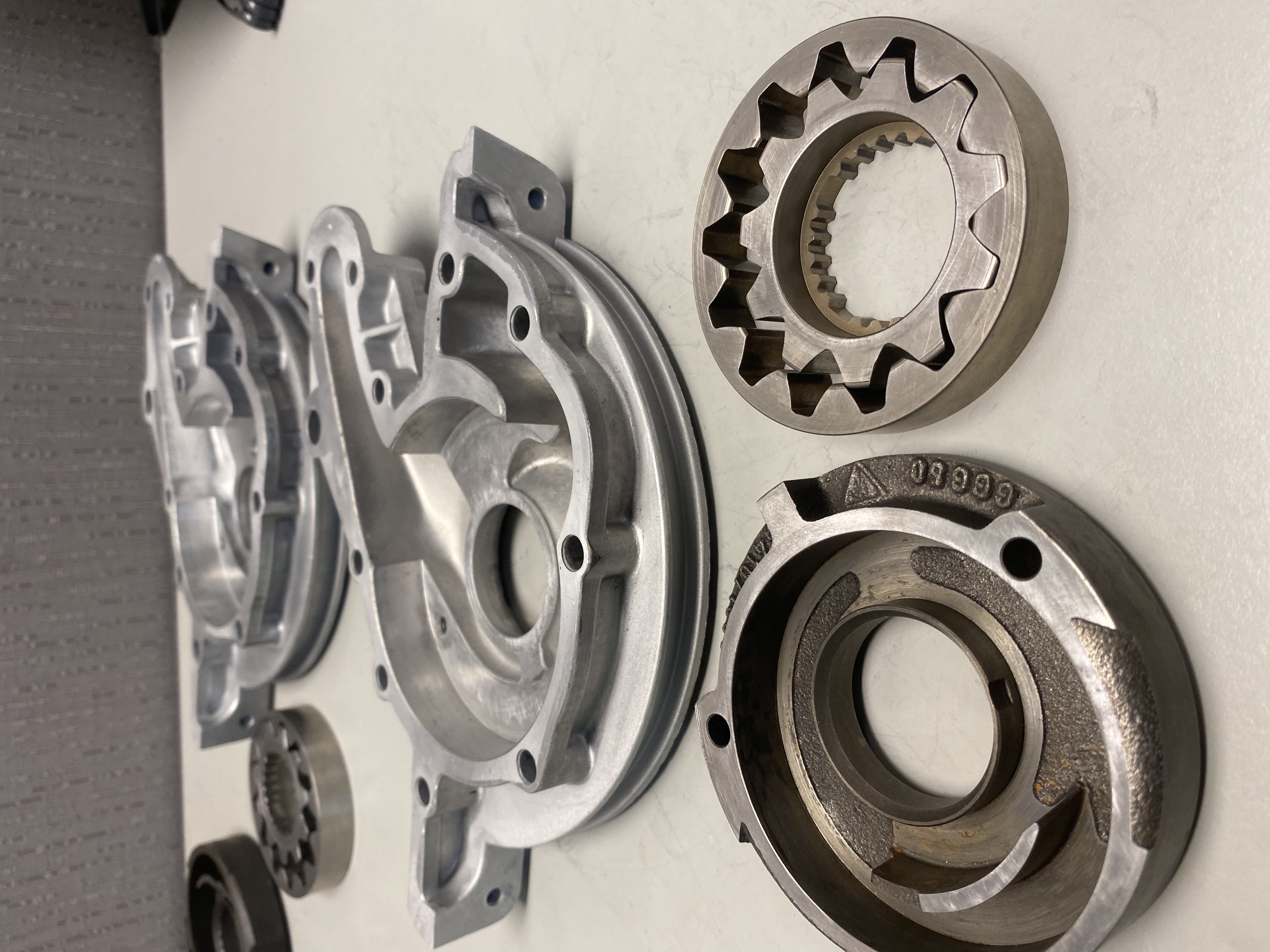

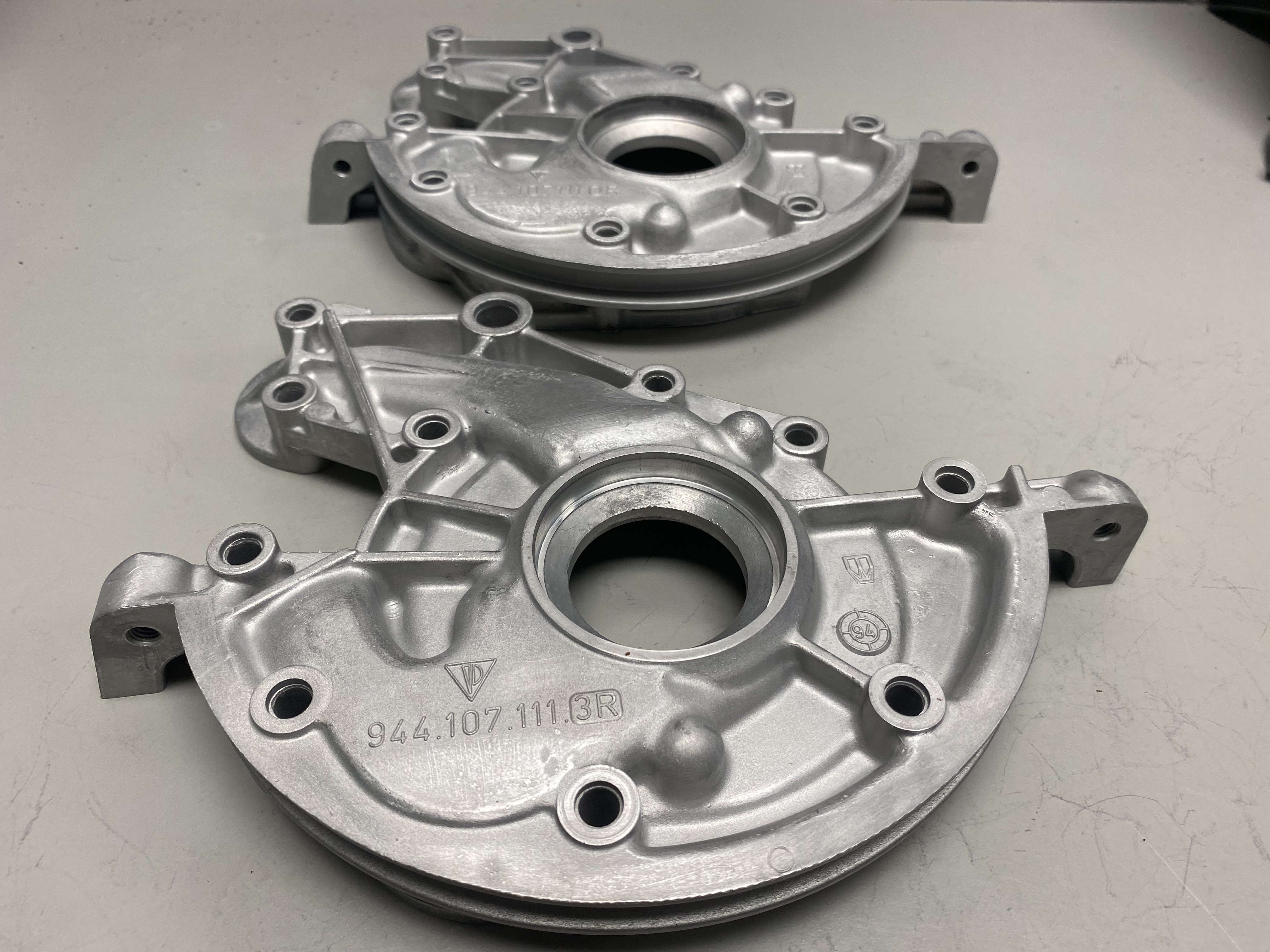

In case anyone wants to see these pieces gutted and what they look like clean.
-
Tom
- Site Admin
- Posts: 8923
- Joined: Fri Jun 25, 2021 2:04 pm
- Location: Silicon Valley, CA
- Has thanked: 932 times
- Been thanked: 3991 times
- Contact:
Looks awesome. Did you blast all that and, if so, what media did you use?
I did everything on the machine at work.
It’s glass media.
Masked the hell out of everything with heavy tape and plastic cap plugs we have from new Deutsch connectors and other fittings. We have bins full of every size and type you could think of.
1. Then washed with high volume hot water and soapy hot water in the giant sink.
2. Compressed air
3. Alcohol in spray bottle
4. Compressed air
5. LPS contact cleaner….cleaned the bearings on 3 throttle bodies after blasting with that.
Throttle bodies were fully masked and capped with tape, plastic caps and foam ear plugs.
Ear plugs work great on threaded holes and small openings. Used a ton when we paint things at work.
I will have to add throttle body pics.
The LPS contact cleaner surprised me how well it blasted out oil/grease crud from the throttle needle bearings even after flushing with the 100% Isopropyl Alcohol.
6. Compressed air again
I am going to spray the internal parts with Solid Film lube. A brand we use at work. Fantastic stuff and very slippery.
I may send some Aluminum parts out with my pistons to get DiamonDyze coated. Hupe is located in Canada so I don’t have to ship across the border. He is one of the founders of DiamonDize. The US side is Techline Coatings.
http://hupemfg.com/custom-anodizing-lines/4566828300
It’s glass media.
Masked the hell out of everything with heavy tape and plastic cap plugs we have from new Deutsch connectors and other fittings. We have bins full of every size and type you could think of.
1. Then washed with high volume hot water and soapy hot water in the giant sink.
2. Compressed air
3. Alcohol in spray bottle
4. Compressed air
5. LPS contact cleaner….cleaned the bearings on 3 throttle bodies after blasting with that.
Throttle bodies were fully masked and capped with tape, plastic caps and foam ear plugs.
Ear plugs work great on threaded holes and small openings. Used a ton when we paint things at work.
I will have to add throttle body pics.
The LPS contact cleaner surprised me how well it blasted out oil/grease crud from the throttle needle bearings even after flushing with the 100% Isopropyl Alcohol.
6. Compressed air again
I am going to spray the internal parts with Solid Film lube. A brand we use at work. Fantastic stuff and very slippery.
I may send some Aluminum parts out with my pistons to get DiamonDyze coated. Hupe is located in Canada so I don’t have to ship across the border. He is one of the founders of DiamonDize. The US side is Techline Coatings.
http://hupemfg.com/custom-anodizing-lines/4566828300
Tom wrote: Tue Nov 30, 2021 7:01 pm Looks awesome. Did you blast all that and, if so, what media did you use?
- Add Pictures/Files
-
- 5597CAA3-E597-4BB3-8A4F-E529B87A82A4.jpeg (3.69 MiB) Viewed 1909 times
-

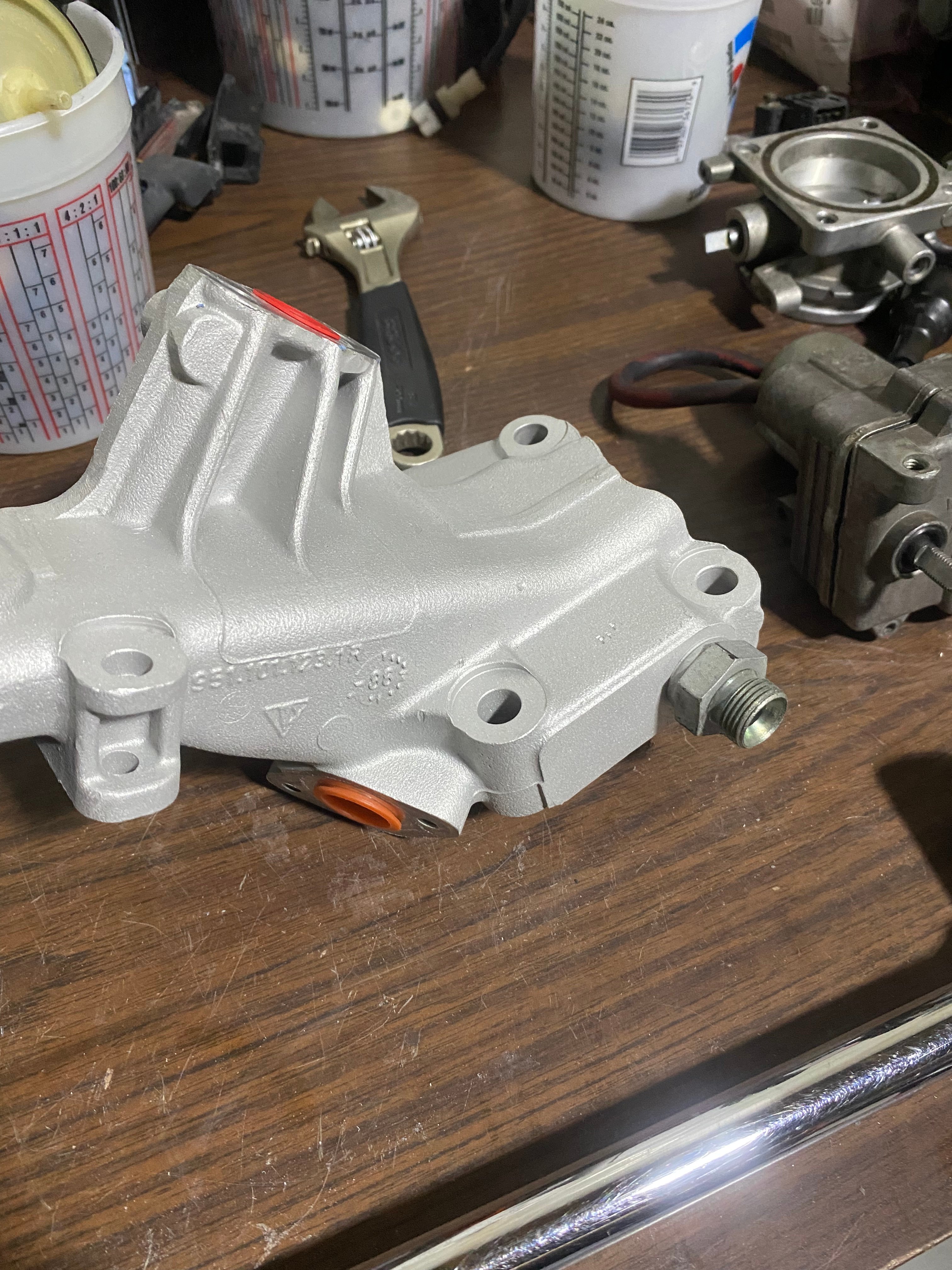

- 0408131D-5D37-42A1-A19E-499F4ED4F6AF.jpeg (3.48 MiB) Viewed 1909 times
-
- 38FEAC32-2D84-4D7E-8CFF-57D5A35B4F17.jpeg (2.87 MiB) Viewed 1909 times
-
danmartinic
- Posts: 288
- Joined: Thu Jul 01, 2021 2:11 pm
- Has thanked: 22 times
- Been thanked: 38 times
No WD40? Bhahahaha!!
Looks great. I recall your parts cleaning pics from a while back.. always neat thanks
Looks great. I recall your parts cleaning pics from a while back.. always neat thanks
-
SirLapsalot
- Posts: 109
- Joined: Fri Sep 17, 2021 11:15 am
- Has thanked: 1 time
- Been thanked: 19 times
Hmm, this is the first I've heard of DaimondDyze. Looks possibly more like a "bling" thing so will have to do some research but do you know how it holds up in highly loaded applications (especially shock loaded)?
I've typically used DLC to extend the life of gearsets in motorsport applications with pretty good success but other alternatives are always good to have in the back pocket...
I've typically used DLC to extend the life of gearsets in motorsport applications with pretty good success but other alternatives are always good to have in the back pocket...
Here is the US vendor
https://techlinecoatings.com/tech-line- ... amondyze2/
https://secureservercdn.net/198.71.233. ... e-book.pdf
Some reading here also.
https://www.pfonline.com/amp/articles/d ... -the-rough
Through my work I have excellent access to technical /engineering information regarding coatings
The process appears to be legit. Talked it over with a bunch of other engineers I work with.
We do a ton of coatings and metal treatments as per WS33111. I have gained a pretty good understanding on the topic through the work we do.
The Solid film lube and Oleophilic coatings I can do myself at work. We have a paint booth and big industrial easy bake oven.

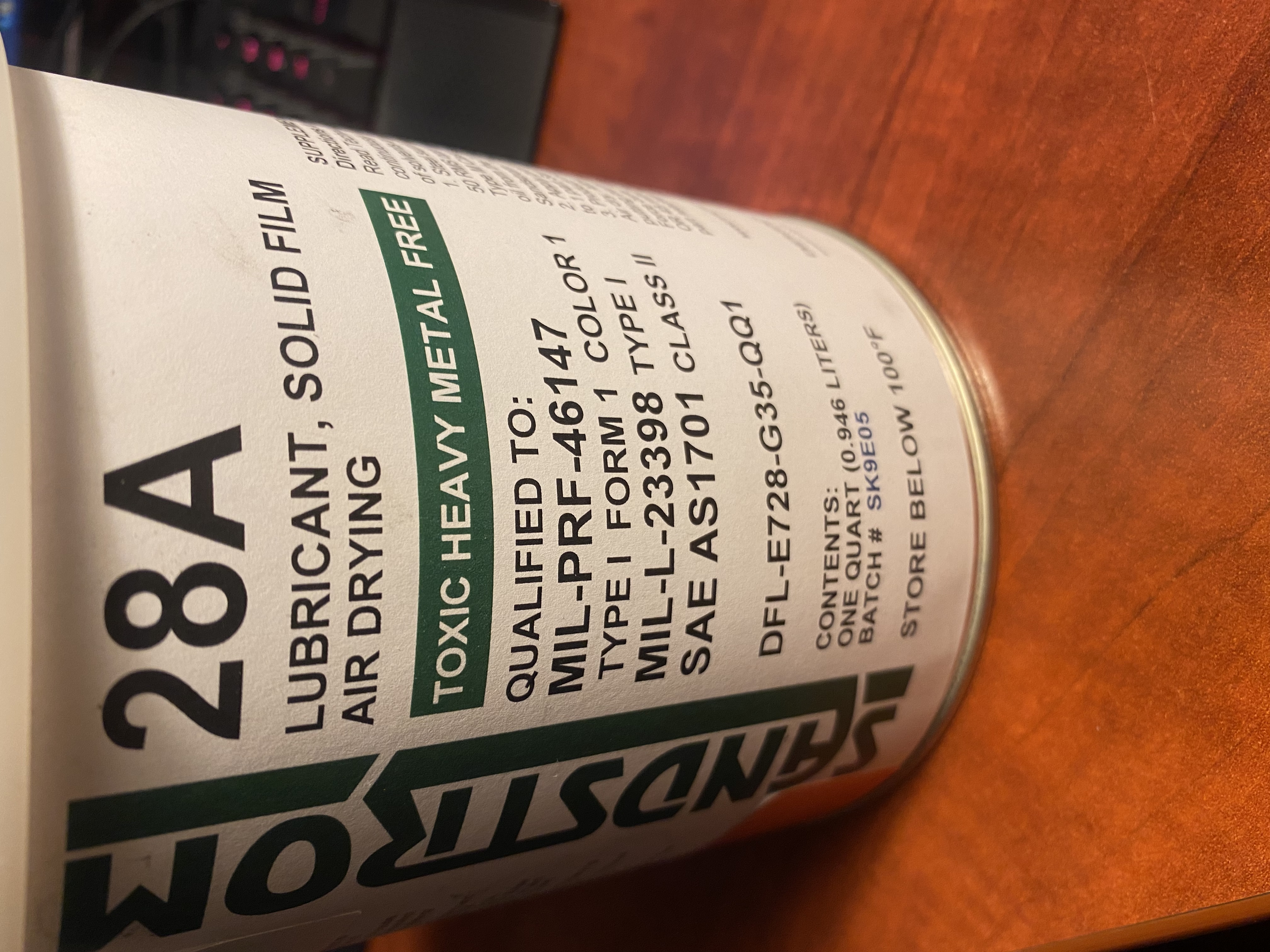

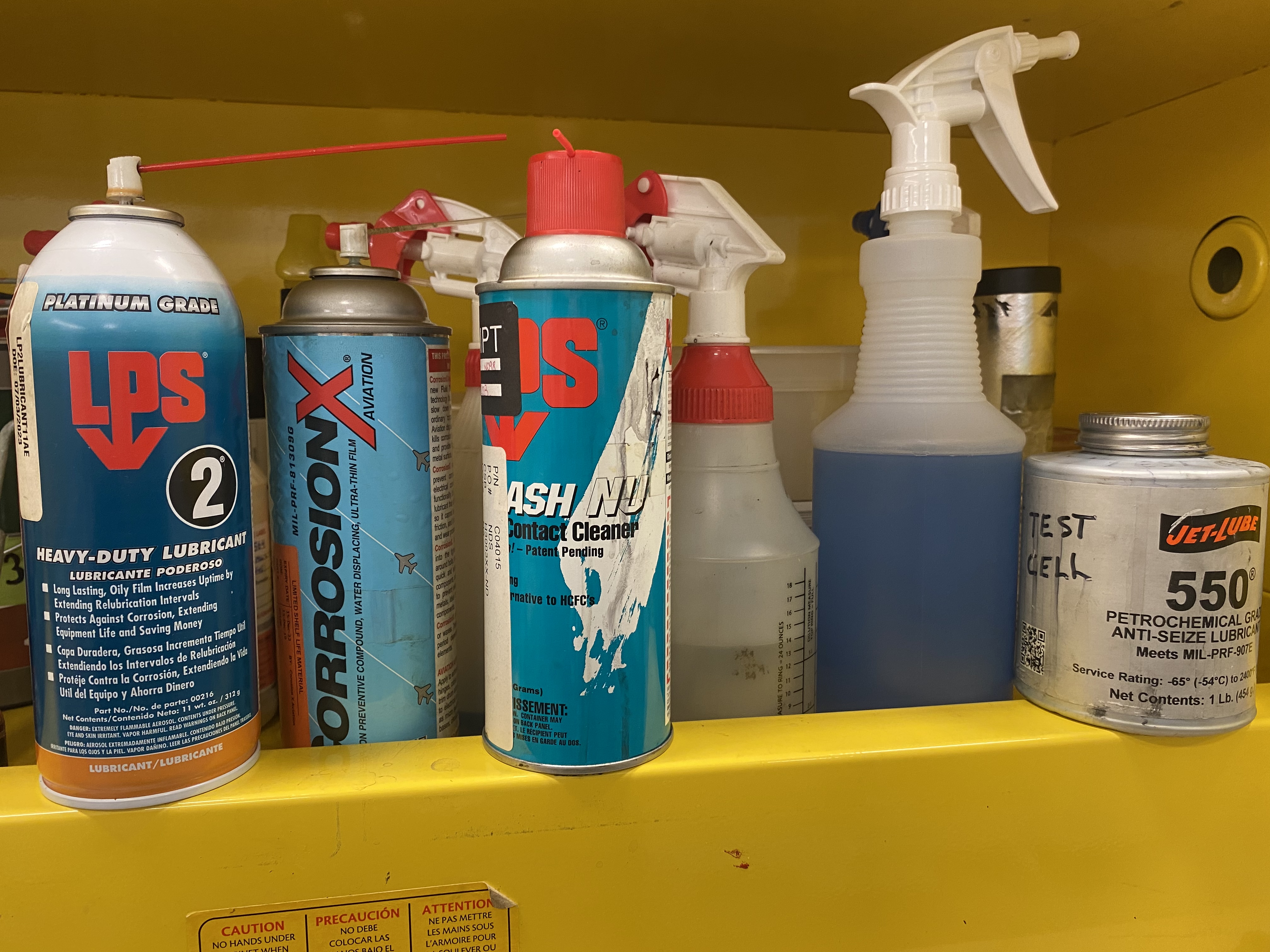

Here is a pic of the Sandstrom solid film lubes I have used/sprayed at work.

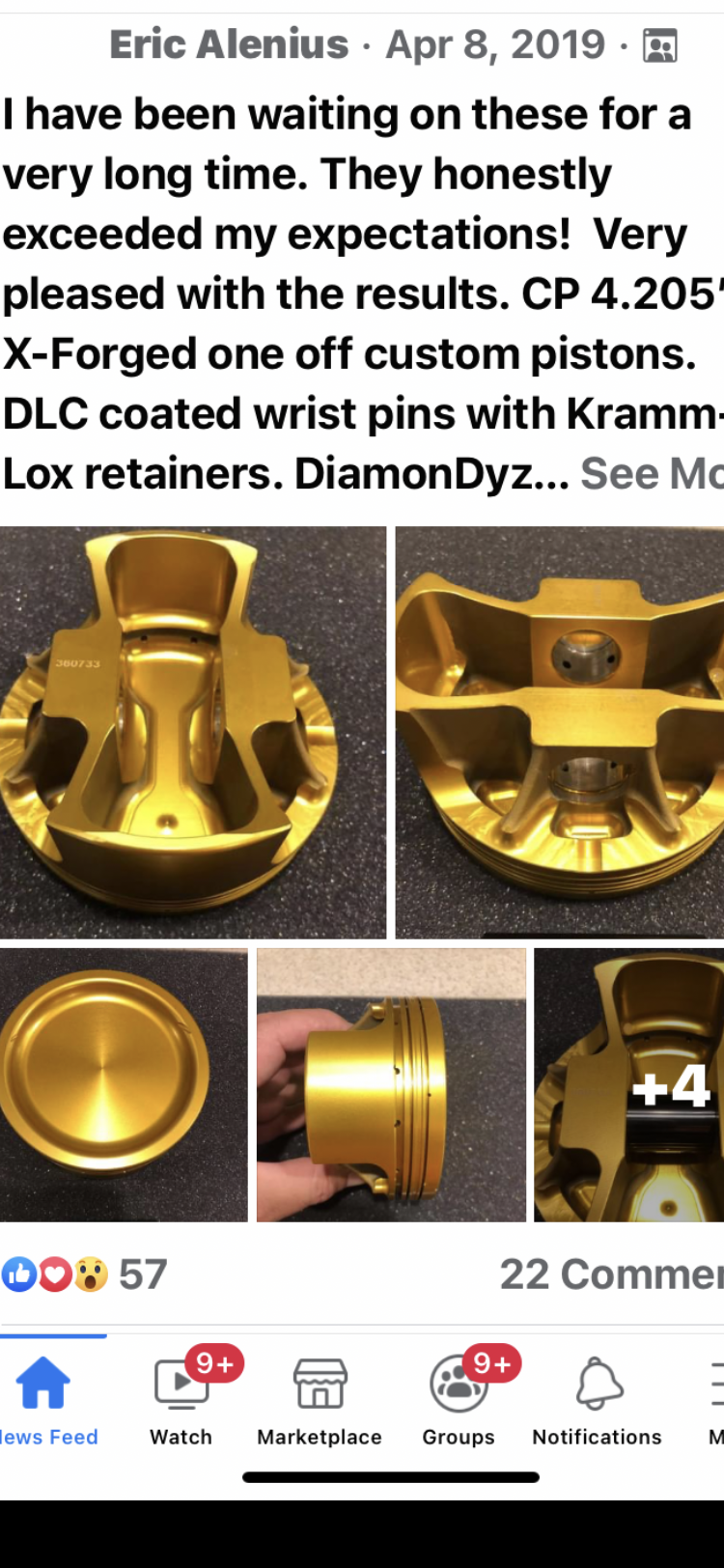

Not sure if you have seen this post on one of the Facebook groups. Have not seen any catastrophe follow up posts.
I had stumbled across DiamondDyze researching at work a number of years ago then realized the post was the same product.
Pump gears would get the solid film lube.
Oil passages Oleophilic coating.
Thinking I will DiamondDyze the turbo mounts and oil pump housings. Has good corrosion properties and slippery. I just don’t want a stupid color. Silver or Grey maybe black would be the only external color I could live with.

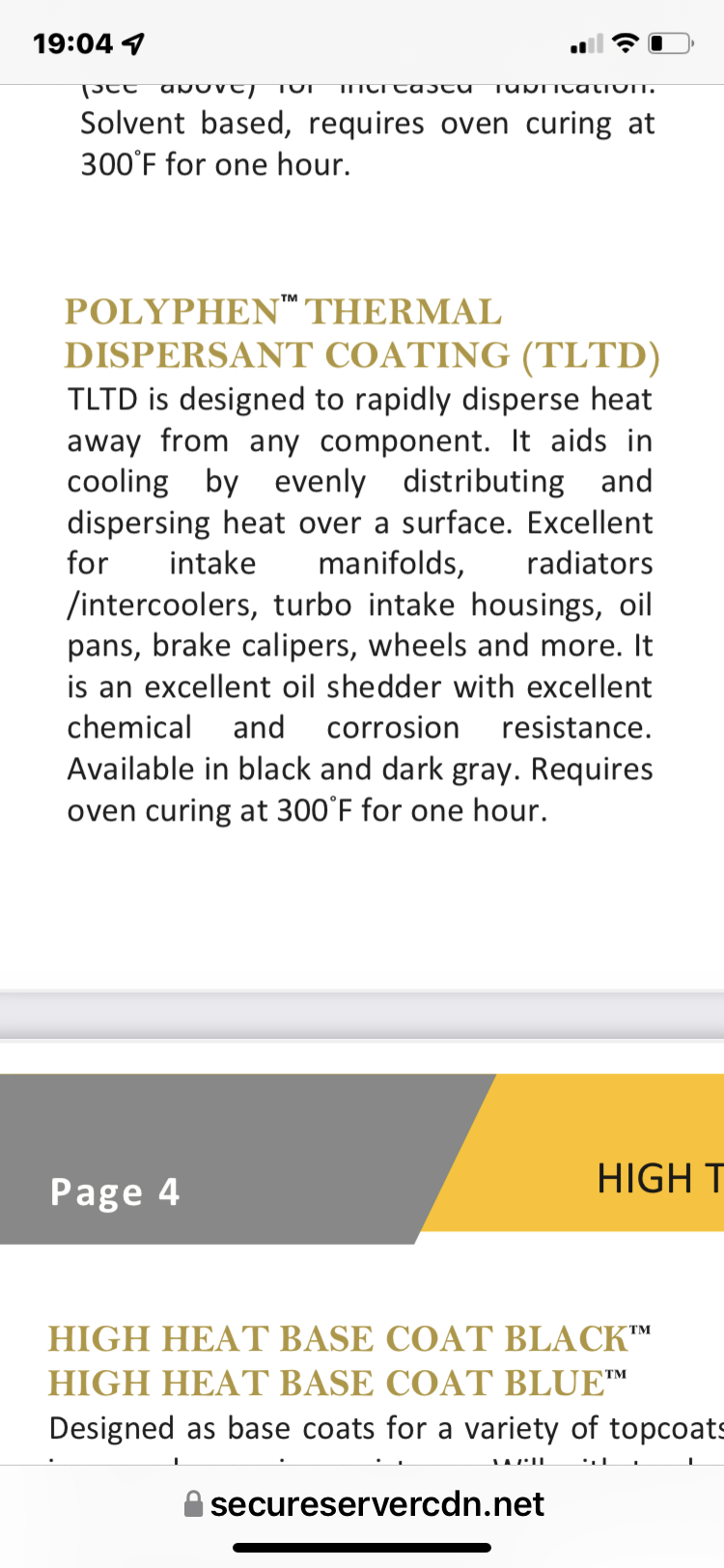

The Polyphen Thermal Dispersant Coating is probably what I would use for the turbo mount and oil pump case but would need to find out if it can be sprayed over the anodized parts. We spray primer and paint over Alodined aluminum parts at work so I would imagine it will work but will confirm.
I would use the TLTD in the oil passages and oil pan.
https://techlinecoatings.com/tech-line- ... amondyze2/
https://secureservercdn.net/198.71.233. ... e-book.pdf
Some reading here also.
https://www.pfonline.com/amp/articles/d ... -the-rough
Through my work I have excellent access to technical /engineering information regarding coatings
The process appears to be legit. Talked it over with a bunch of other engineers I work with.
We do a ton of coatings and metal treatments as per WS33111. I have gained a pretty good understanding on the topic through the work we do.
The Solid film lube and Oleophilic coatings I can do myself at work. We have a paint booth and big industrial easy bake oven.
Here is a pic of the Sandstrom solid film lubes I have used/sprayed at work.
Not sure if you have seen this post on one of the Facebook groups. Have not seen any catastrophe follow up posts.
I had stumbled across DiamondDyze researching at work a number of years ago then realized the post was the same product.
Pump gears would get the solid film lube.
Oil passages Oleophilic coating.
Thinking I will DiamondDyze the turbo mounts and oil pump housings. Has good corrosion properties and slippery. I just don’t want a stupid color. Silver or Grey maybe black would be the only external color I could live with.
The Polyphen Thermal Dispersant Coating is probably what I would use for the turbo mount and oil pump case but would need to find out if it can be sprayed over the anodized parts. We spray primer and paint over Alodined aluminum parts at work so I would imagine it will work but will confirm.
I would use the TLTD in the oil passages and oil pan.
- Add Pictures/Files
-
- 727D04A0-2D9B-430A-A518-A023953D8B17.png (430.16 KiB) Viewed 1887 times
-
- 52D50227-9E3B-4D5A-B398-3C45A0577CDF.png (3.29 MiB) Viewed 1887 times
-
- Solid film
- 1B18DB31-EA93-4DCA-A3F0-F7826683F288.jpeg (2.99 MiB) Viewed 1887 times
-
SirLapsalot
- Posts: 109
- Joined: Fri Sep 17, 2021 11:15 am
- Has thanked: 1 time
- Been thanked: 19 times
Duh, never mind its an anodizing... NG for the application I was thinking of.
ECG wrote: Sun Oct 20, 2024 5:36 am I am trying to find more information regarding metal treatments as per WS33111. Can you tell me more about this spec?
Do you know where I can find a copy of this specification? Thank you.
Sorry I am refreshing my memory a bit here.
You won’t/can’t find a copy as it’s a controlled document which can’t be shared….your not missing out on anything at all regarding cars.
My statement was more or less implying to follow manufacturer instructions. Also that coatings aren’t snake oil provided it’s from a reputable manufacturer. Eg Calico coatings.
Products exist in present day that didn’t before that can aid with various aspects. Eg thermal coatings or non stick etc of which I like to try/experiment.
Any product manufacturer documentation is going to give you all the proper details for application.
Whatever you choose the necessary details will be there.
Hope that clarifies my earlier post.
