Exhaust Stud Removal
-
danmartinic
- Posts: 288
- Joined: Thu Jul 01, 2021 2:11 pm
- Has thanked: 23 times
- Been thanked: 39 times
Good morning gentlemen

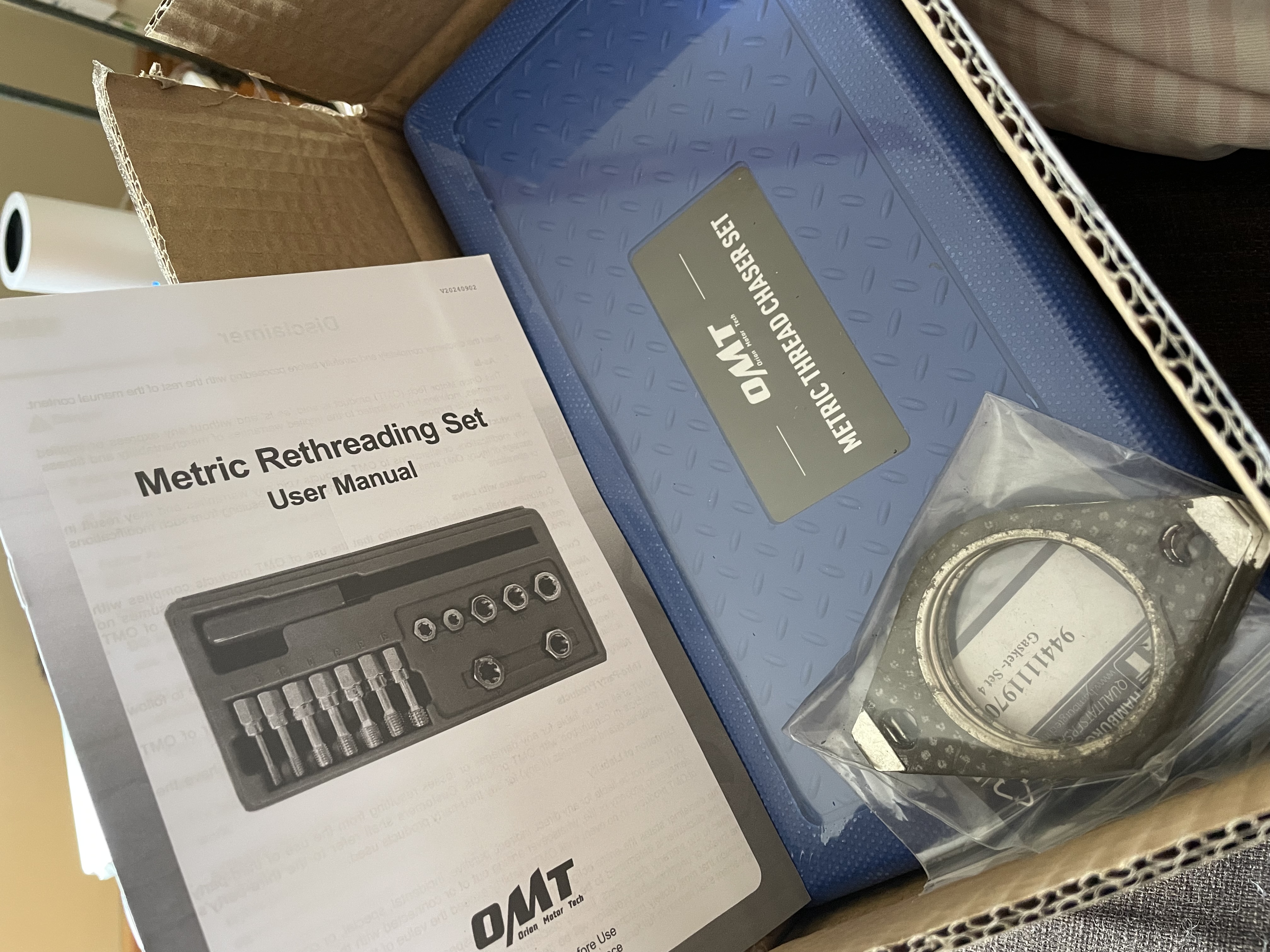

I now have a thread chaser set.. new exhaust gaskets

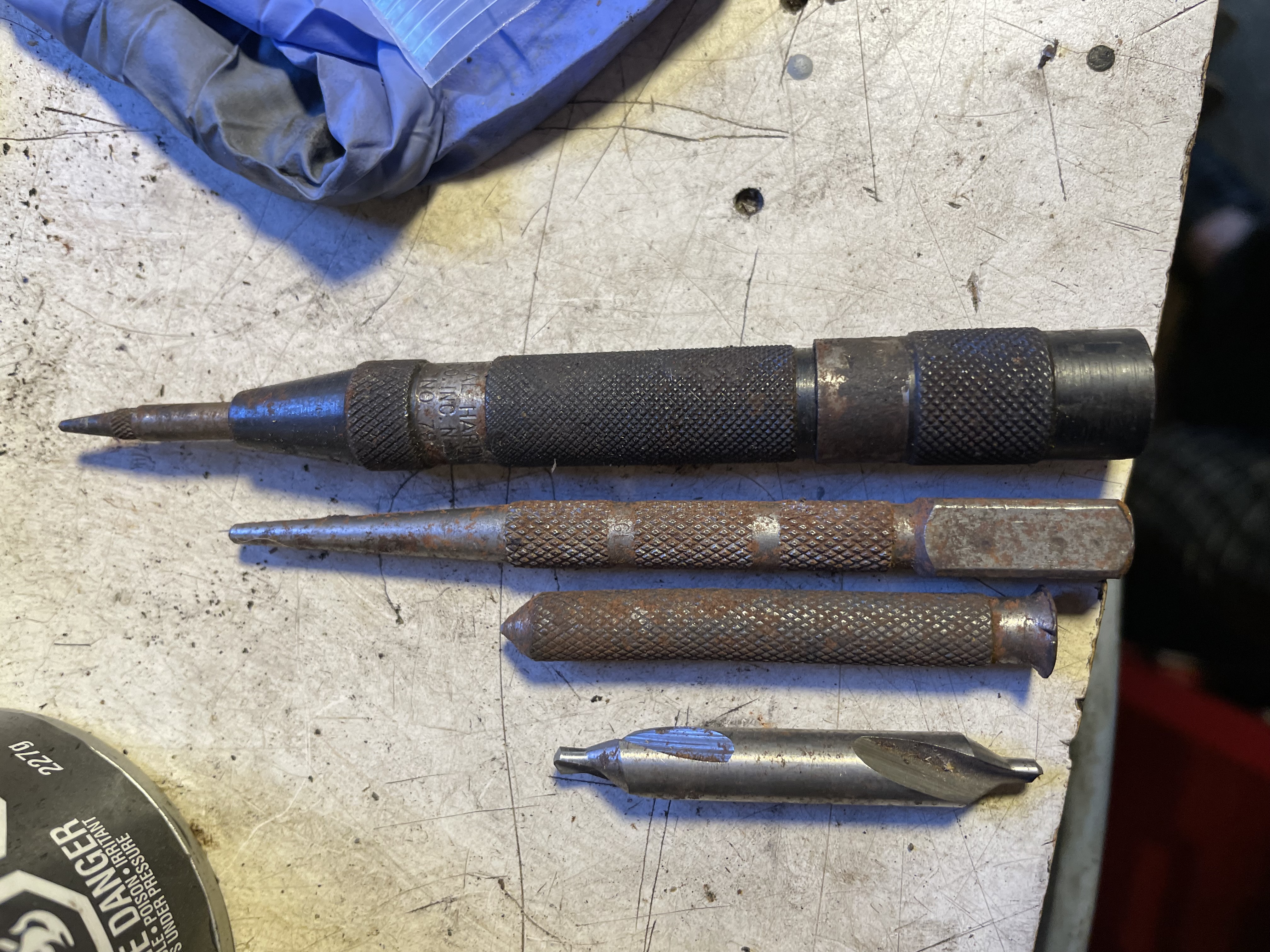

These are my punches and pilot bit.. not sure if any of these are what is referred to above?

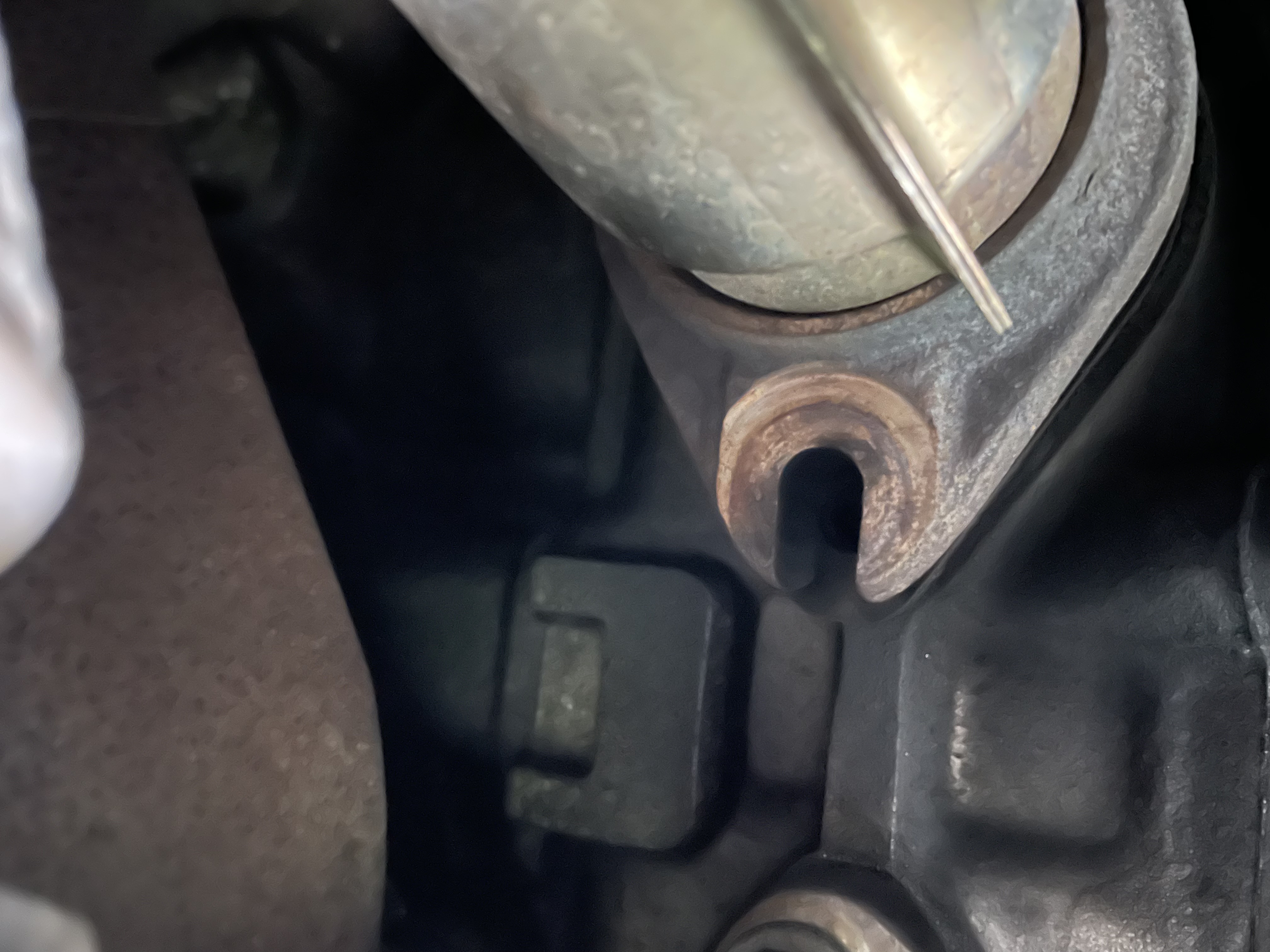

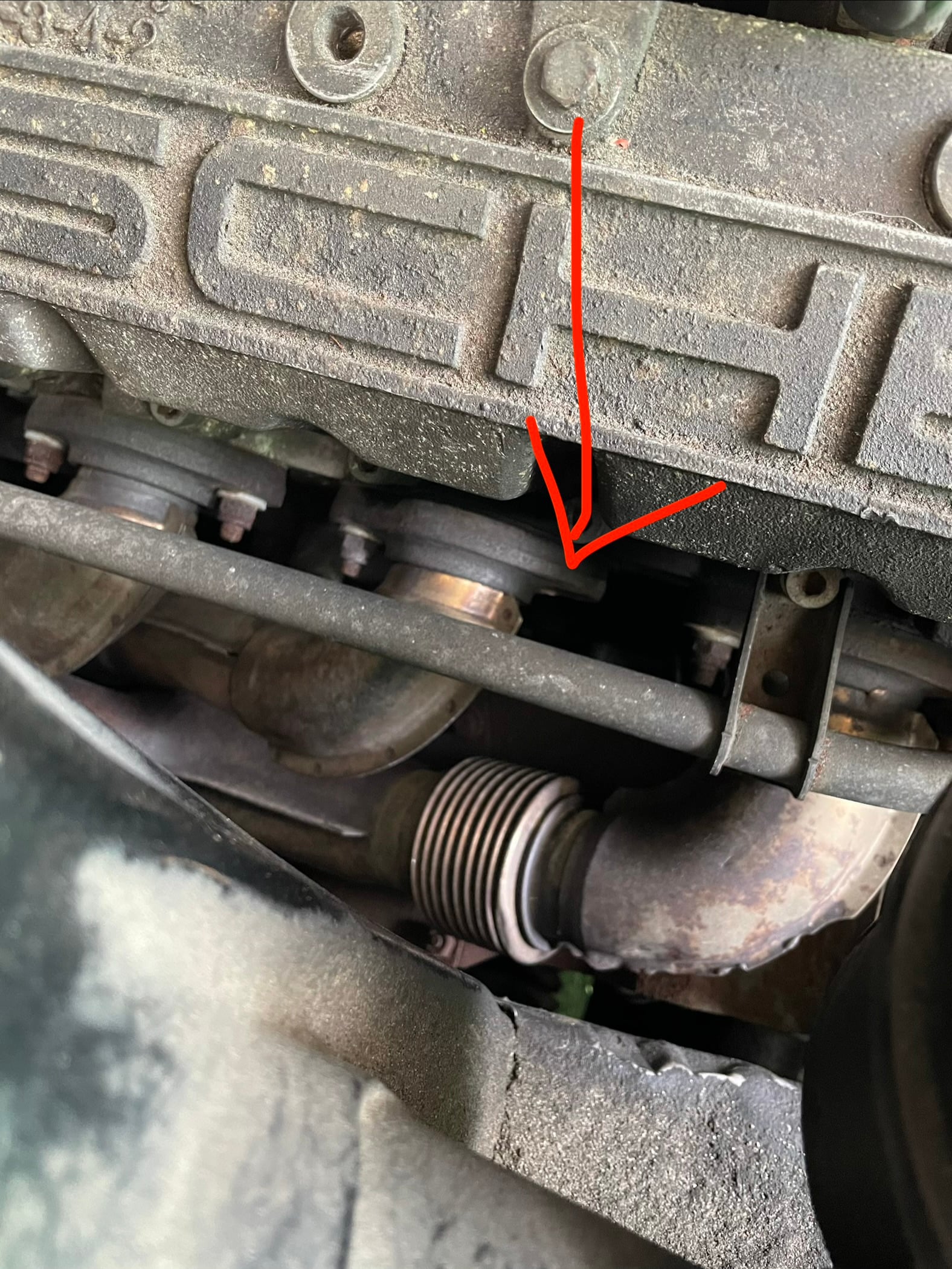

Tom, the stud in question would be #3
I thought maybe I could just use the manifold as a guide somehow but this one is a slot not a hole
Do you need precise measurements of, say, exhaust gasket holes?
I now have a thread chaser set.. new exhaust gaskets
These are my punches and pilot bit.. not sure if any of these are what is referred to above?
Tom, the stud in question would be #3
I thought maybe I could just use the manifold as a guide somehow but this one is a slot not a hole
Do you need precise measurements of, say, exhaust gasket holes?
-
Tom
- Site Admin
- Posts: 8933
- Joined: Fri Jun 25, 2021 2:04 pm
- Location: Silicon Valley, CA
- Has thanked: 932 times
- Been thanked: 3995 times
- Contact:
Got it, will post a drill jig soon. I'll get the measurements and such off my spares.danmartinic wrote: Sun May 03, 2026 7:02 am Good morning gentlemen
I now have a thread chaser set.. new exhaust gaskets
These are my punches and pilot bit.. not sure if any of these are what is referred to above?
Tom, the stud in question would be #3
I thought maybe I could just use the manifold as a guide somehow but this one is a slot not a hole
Do you need precise measurements of, say, exhaust gasket holes?
Given the challenge of your situation, I'm thinking the jig should accommodate steel drill bushing of at least a couple of sizes, so you can start by trying a smaller reverse bit to see if the remaining stud will break free and turn out. But you may need to install a helicoil -- some broken studs make preserving the original aluminum thread virtually impossible.-
danmartinic
- Posts: 288
- Joined: Thu Jul 01, 2021 2:11 pm
- Has thanked: 23 times
- Been thanked: 39 times

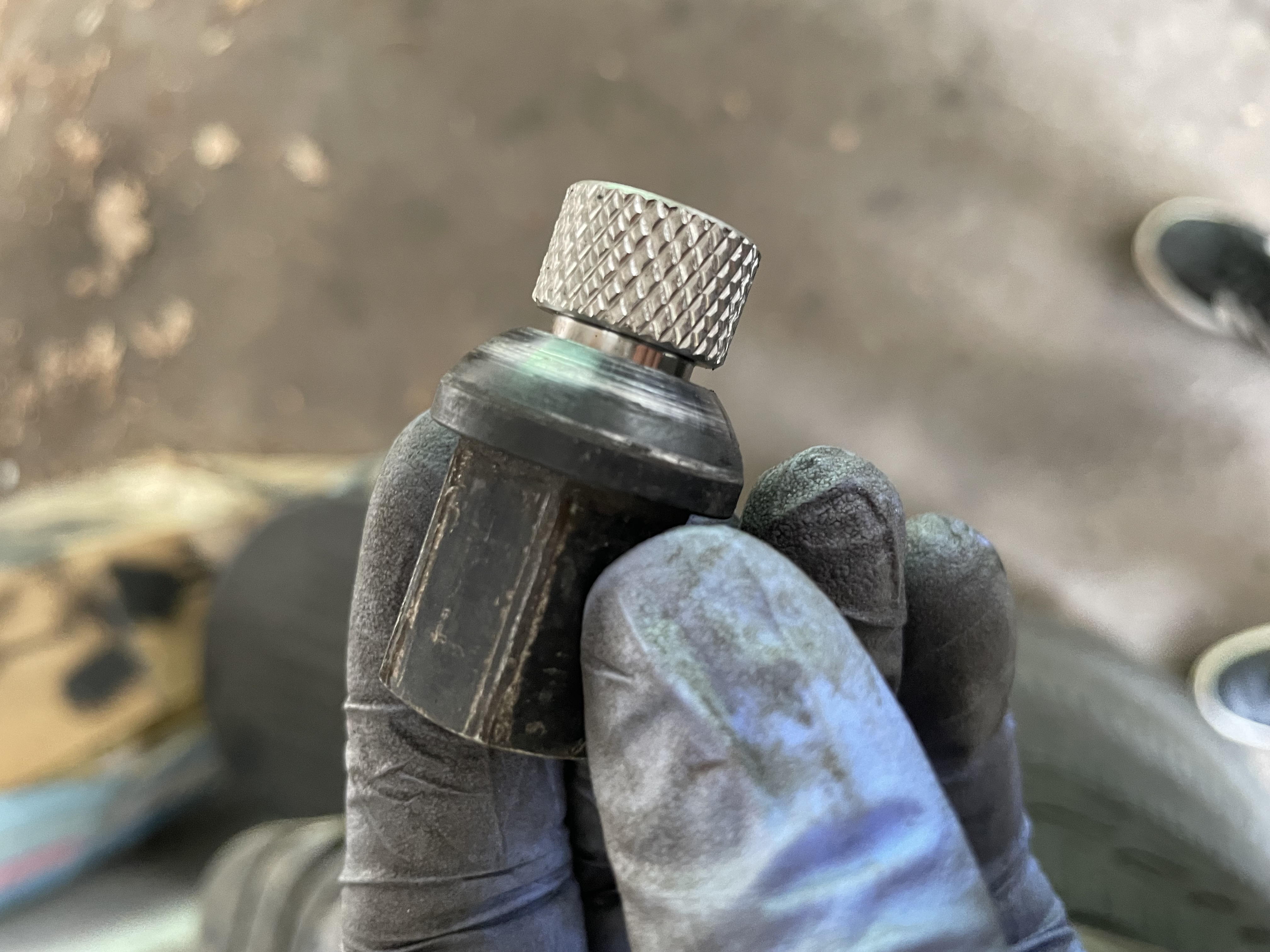

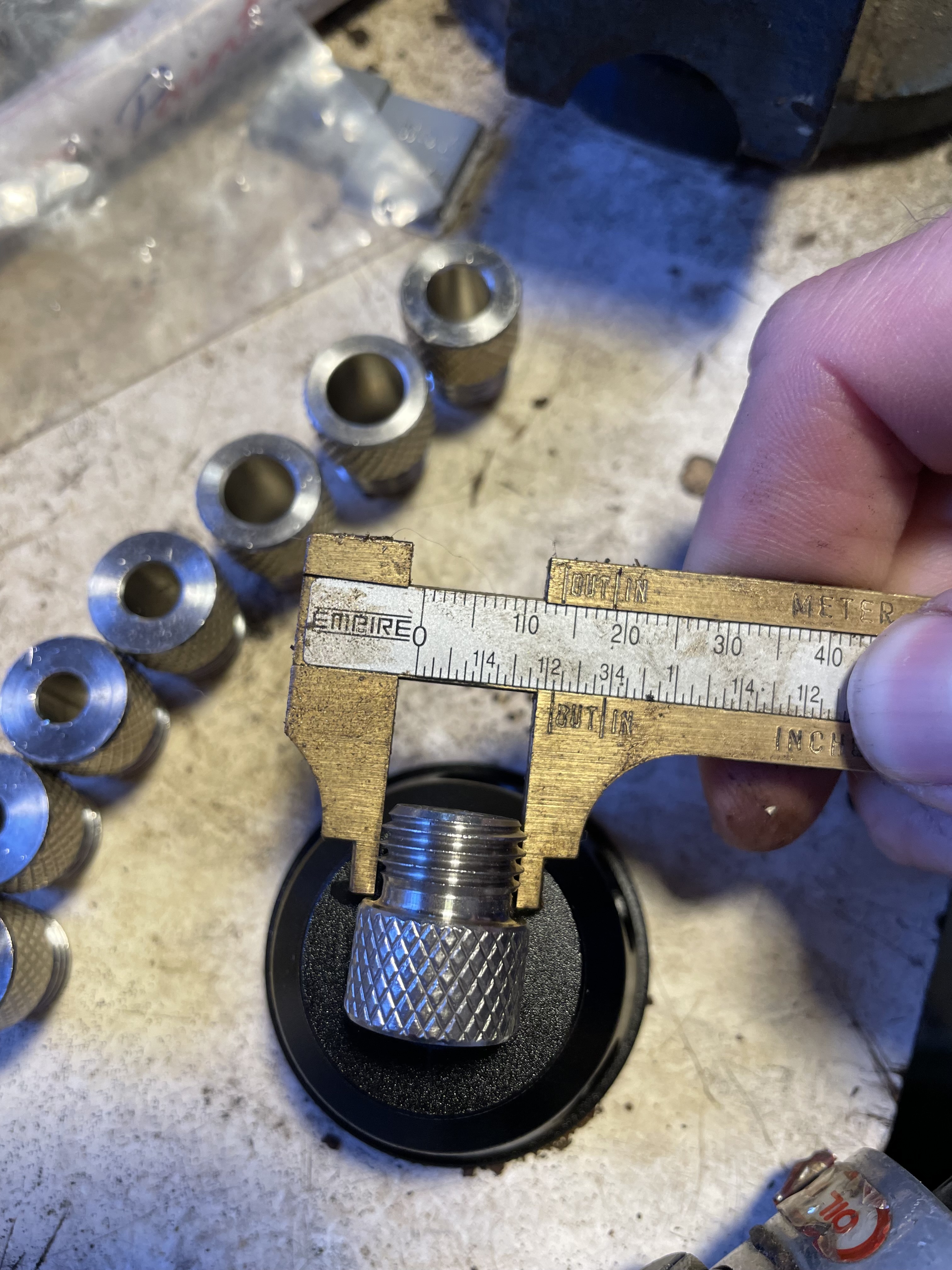

I'm not good at reading these things.. the threaded bit guides are 1/2"? The pitch is definitely 1.5

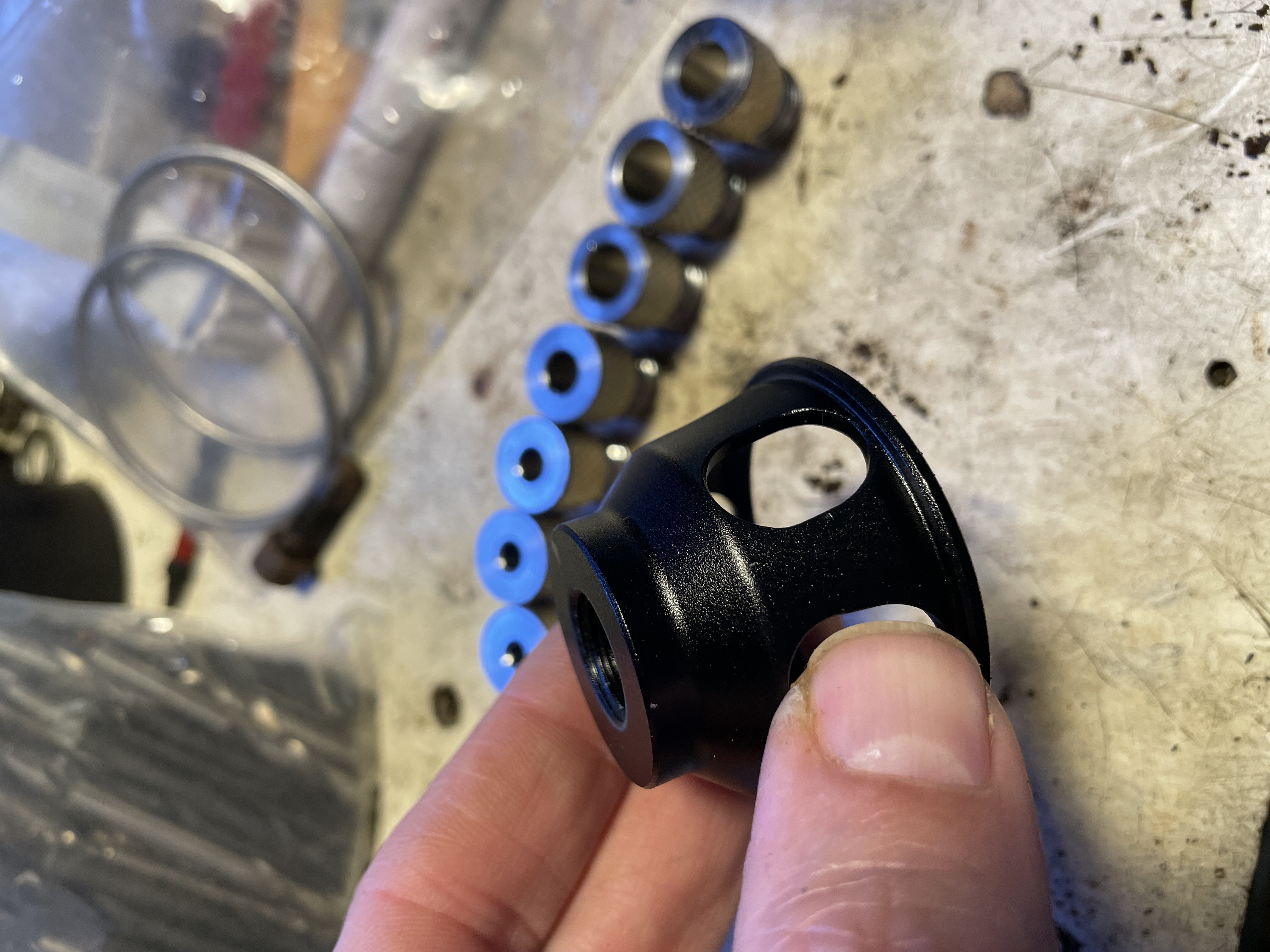

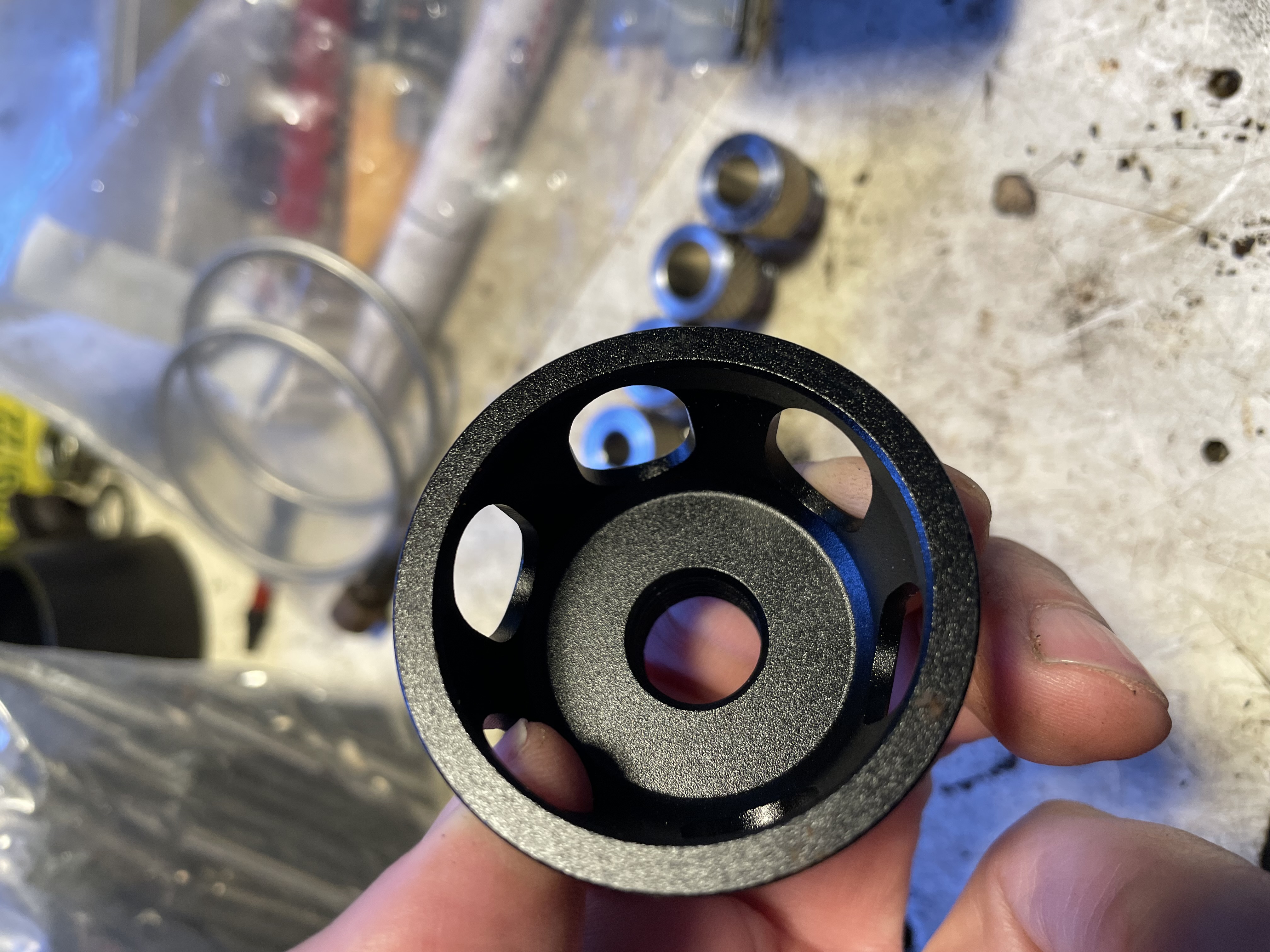

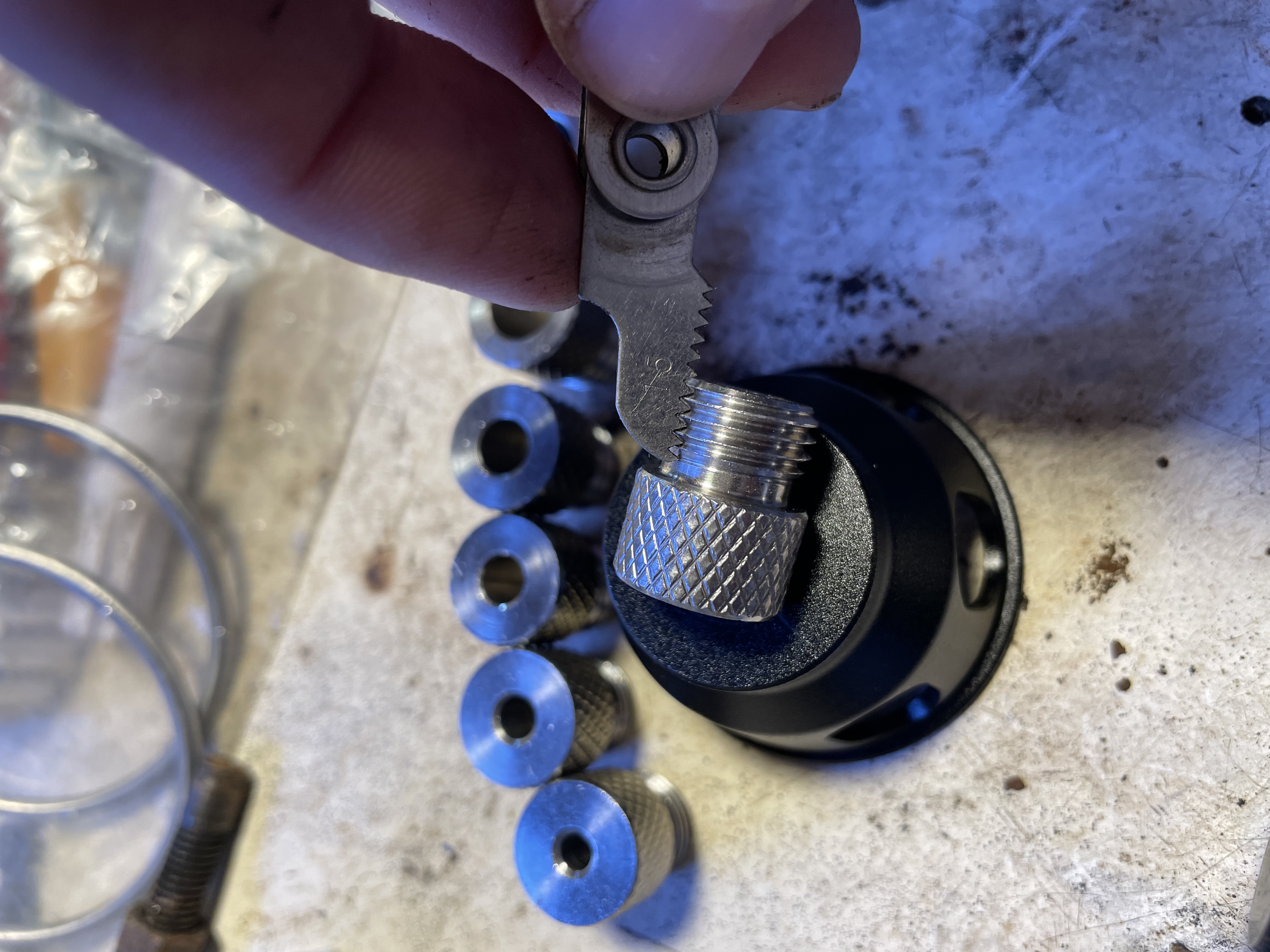

Not sure if the jig they fit into is of any use
- IMG_3223.jpeg (2.71 MiB) Viewed 139 times
- IMG_3224.jpeg (2.78 MiB) Viewed 139 times
- IMG_3225.jpeg (2.38 MiB) Viewed 139 times
- IMG_3226.jpeg (2.49 MiB) Viewed 139 times
-
danmartinic
- Posts: 288
- Joined: Thu Jul 01, 2021 2:11 pm
- Has thanked: 23 times
- Been thanked: 39 times

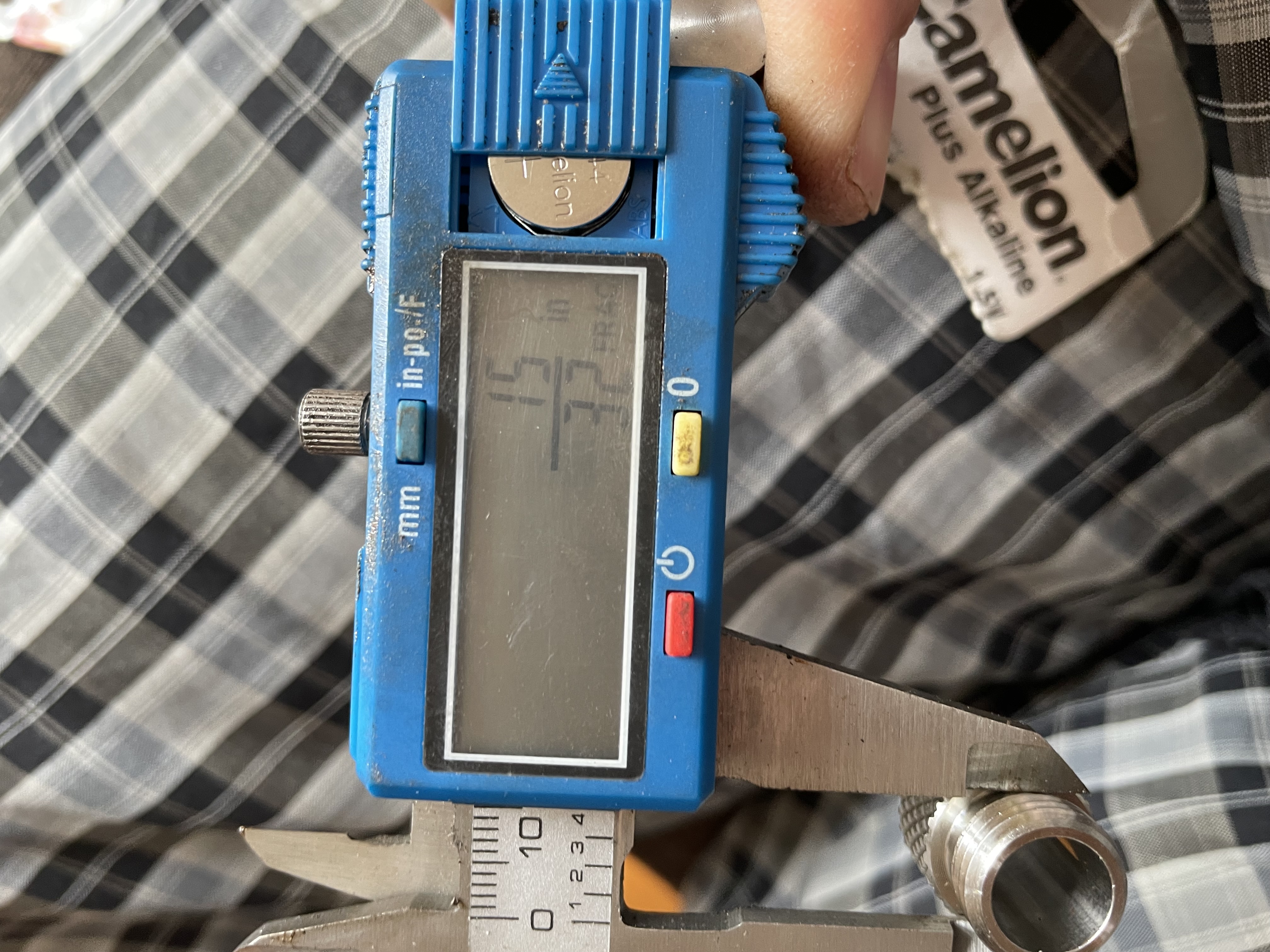

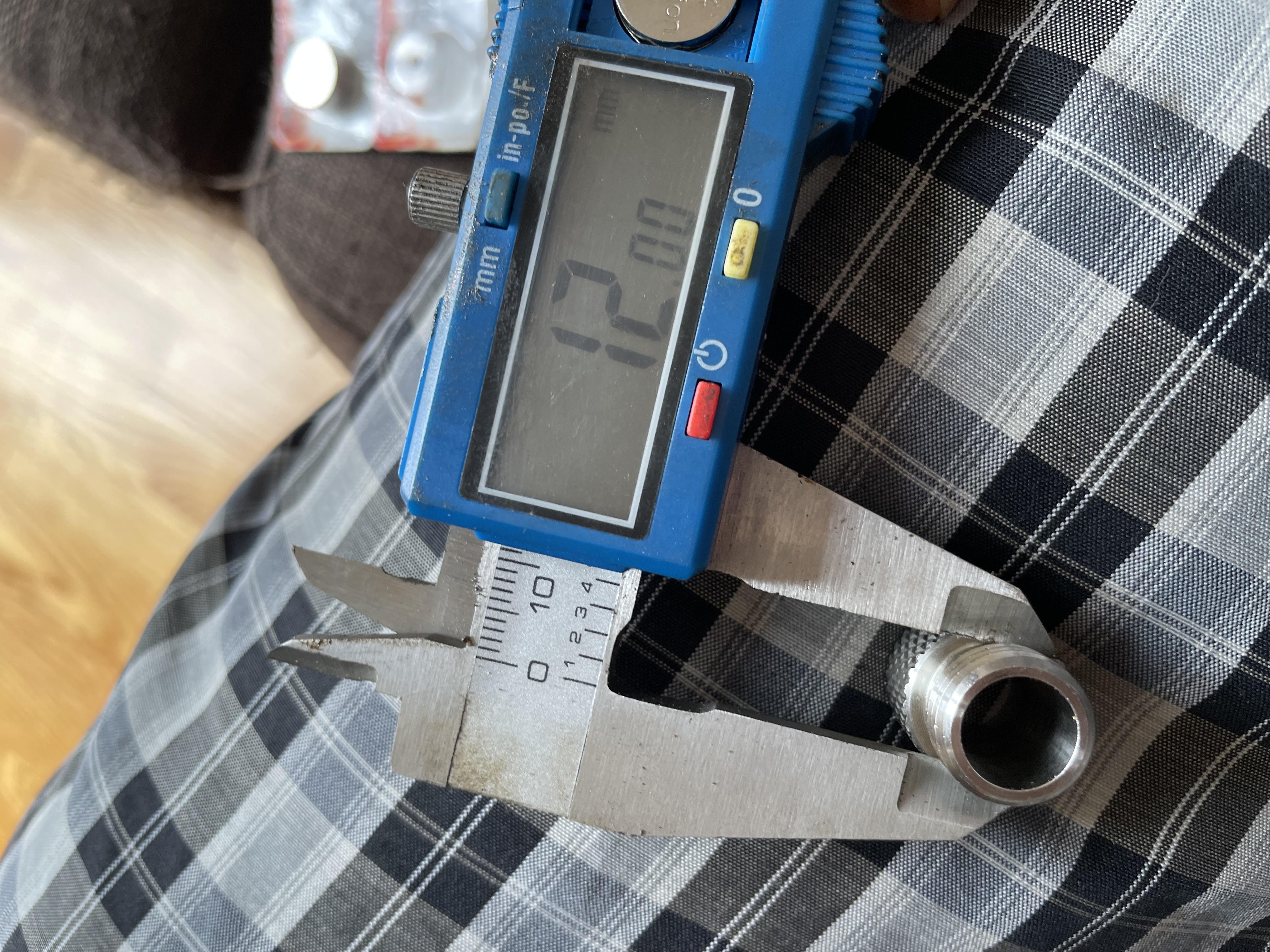

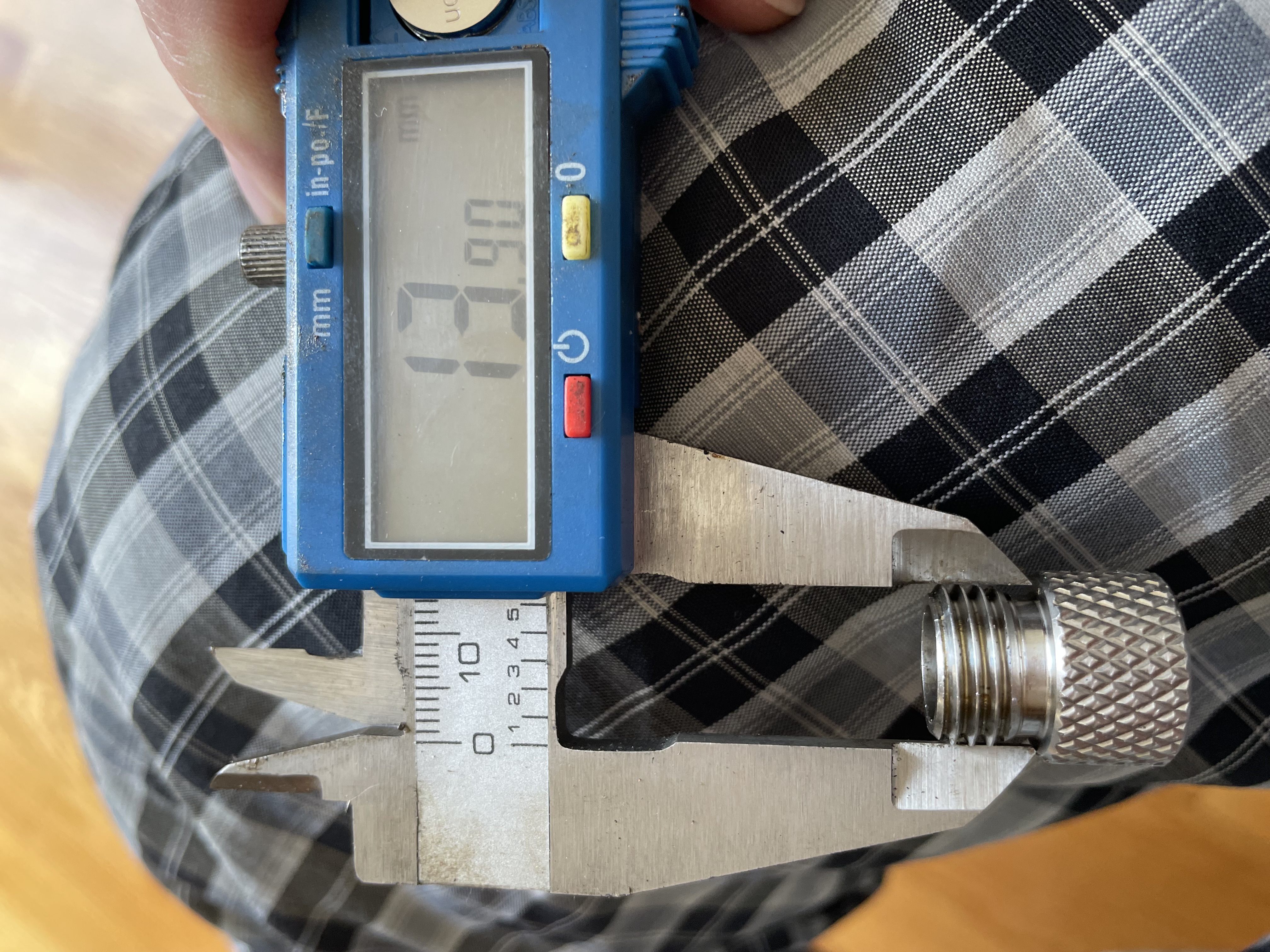

I pulled out the digital caliper with a fresh battery... makes more sense now
Looks like M14
On imperial setting...
Above are both 'shaft' and thread measurements

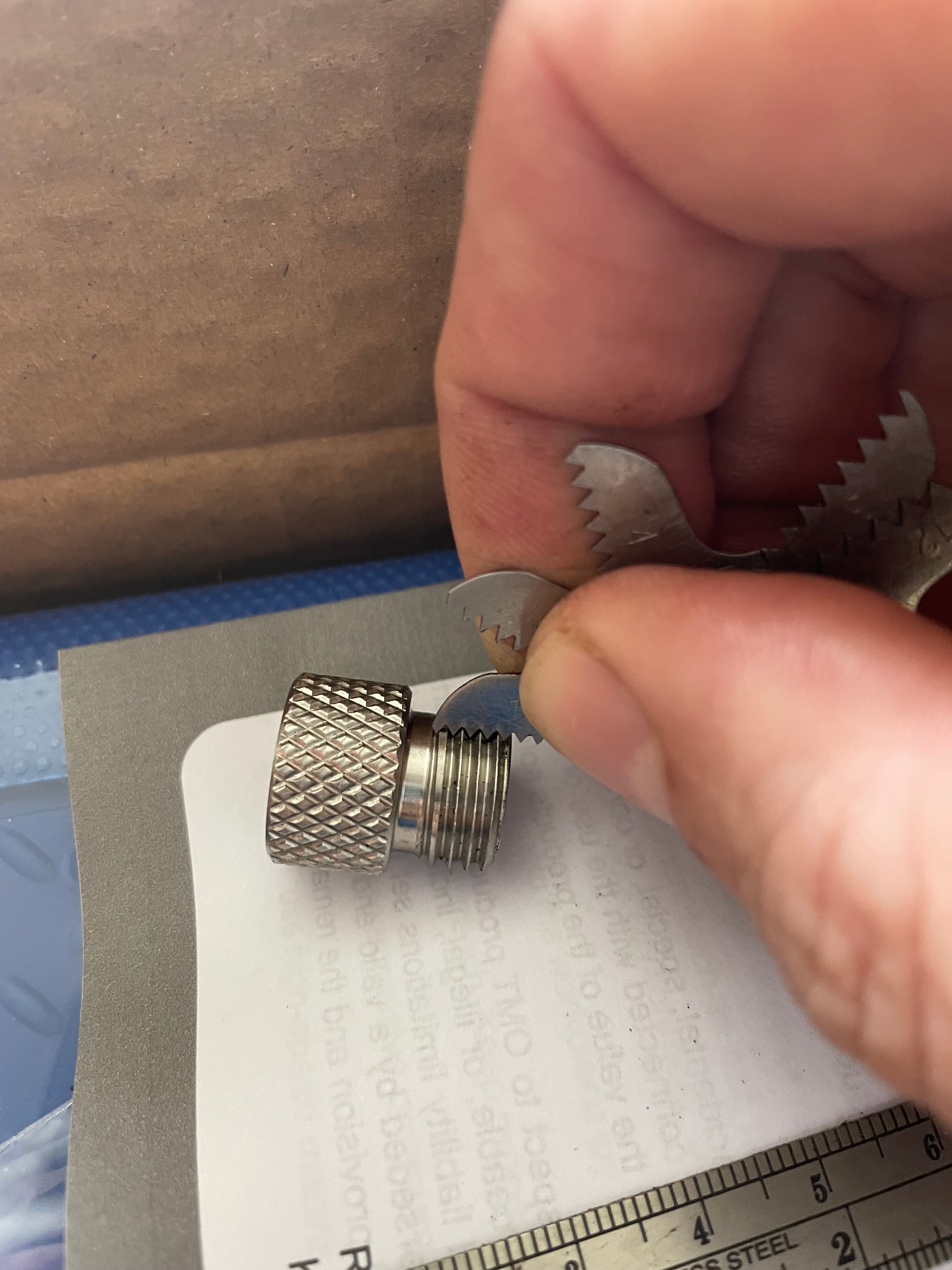

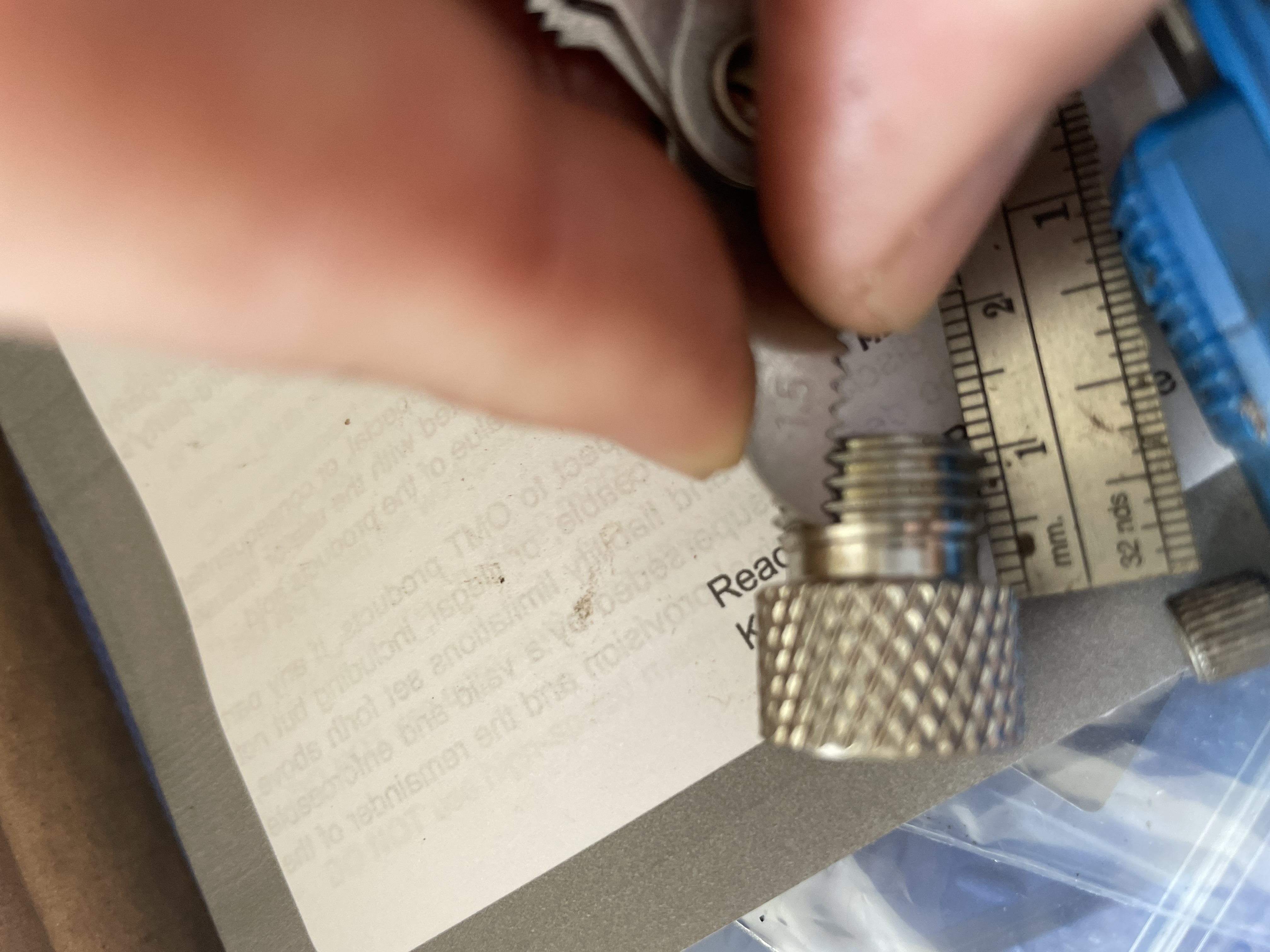

As for pitch... both 1.5 and SAE 18 fit nicely
I feel M14 x 1.5 will suffice
Just came from two hardware stores where M14 only comes in 2.00 pitch
- IMG_3235.jpeg (3.45 MiB) Viewed 126 times
- IMG_3229.jpeg (3.32 MiB) Viewed 126 times

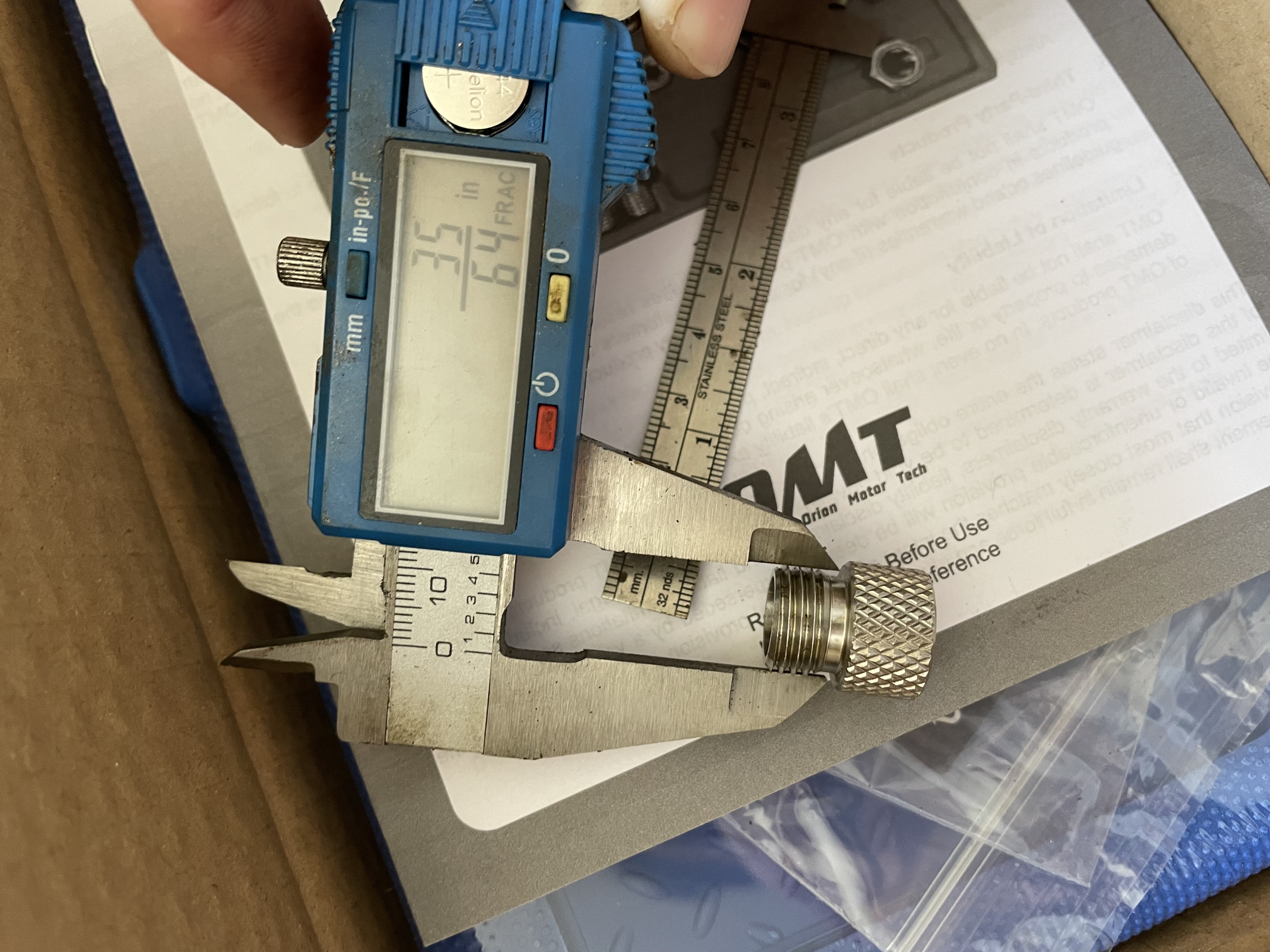

On imperial setting...
- IMG_3238.jpeg (3.4 MiB) Viewed 126 times
- IMG_3234.jpeg (3 MiB) Viewed 126 times
As for pitch... both 1.5 and SAE 18 fit nicely
- IMG_3239.jpeg (2.4 MiB) Viewed 126 times
- IMG_3236.jpeg (2.62 MiB) Viewed 126 times
Just came from two hardware stores where M14 only comes in 2.00 pitch
-
Tom
- Site Admin
- Posts: 8933
- Joined: Fri Jun 25, 2021 2:04 pm
- Location: Silicon Valley, CA
- Has thanked: 932 times
- Been thanked: 3995 times
- Contact:
Try screwing one into a 944 lug nut. They happen to be M14 x 1.5
-
